W20-7(CA) Flagger (California) (symbol)

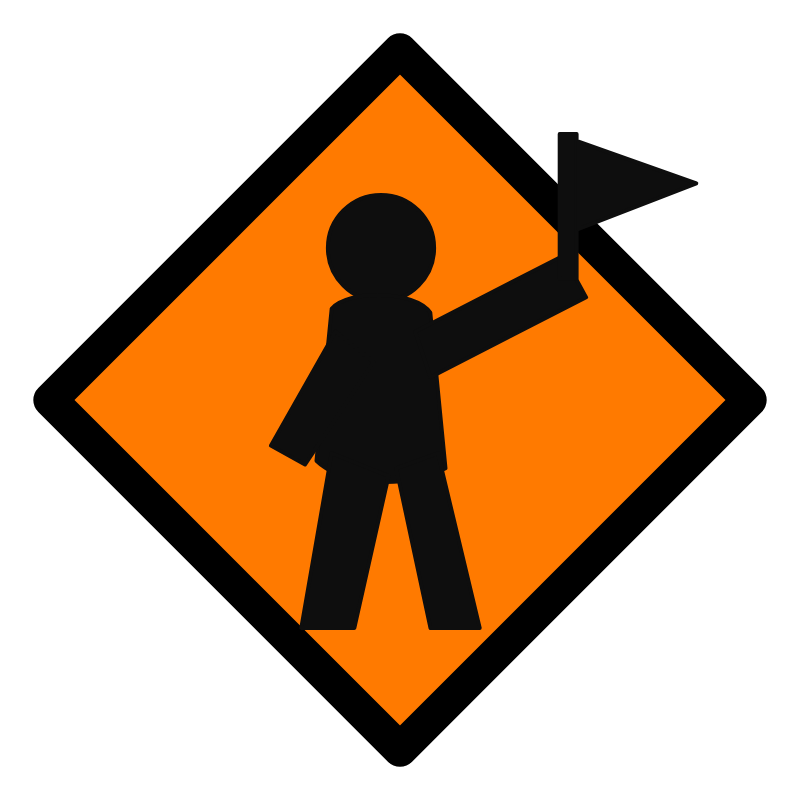

The California application of the Flagger warning sign, reflecting CA MUTCD and Caltrans flagging practice, sizing, and fluorescent orange sheeting. The CA MUTCD adopts the federal W20-7 flagger symbol design (orange diamond, flagger silhouette); the face shown is the official FHWA artwork from Standard Highway Signs 2024 Release 3 (issued 12/20/24).
- Sign Name
- Flagger (California) (symbol)
- General Meaning
- The California application of the Flagger warning sign, reflecting CA MUTCD and Caltrans flagging practice, sizing, and fluorescent orange sheeting.
- MUTCD Code
- W20-7(CA)
- Typical Use
- Advance warning area, ahead of the work.
- Sign Category
- Warning Signs
Specifications
- Standard Shape
- Diamond
- Background Color
- Fluorescent Orange
- Legend / Symbol
- Black legend
- Border
- Black
- Reflectivity
- High Intensity (for nighttime visibility)
- Compliance
- CA MUTCD (California)
Standard Sizes (inches)
- 30 in Diamond30" × 30"
- 36 in Diamond36" × 36"
- 48 in Diamond48" × 48"
- 60 in Diamond60" × 60"
Material / Application Notes
Caltrans and local-agency flagging operations. Confirm placement and supplemental plaques against the applicable CA MUTCD standard.
View this sign on the CA MUTCD (Caltrans)California Notes
California-specific application notes and adoptions may differ. Review California requirements where applicable.
What It Means / When This Sign Is Used
In the field, W20-7(CA) Flagger (California) (symbol) is typically positioned at the advance warning area, ahead of the work. Common deployments include caltrans and local-agency flagging operations; paired with BE PREPARED TO STOP; sized per Caltrans sign specifications. Always confirm its size, retroreflective sheeting, spacing, and placement against the CA MUTCD 2026 and the reviewing agency before finalizing the traffic control plan.
Learn more about Flagger (California) (symbol) sign requirementsWhen & Where It's Used
- Caltrans and local-agency flagging operations
- Paired with BE PREPARED TO STOP
- Sized per Caltrans sign specifications
Placement on a Traffic Control Plan
- Where it sits
- Advance warning area, ahead of the work.
- CA MUTCD reference
- CA MUTCD Part 6 (Temporary Traffic Control), Chapter 6F; warning-sign design in Part 2C
- Typical minimum size
- 48" × 48" on conventional roads; 60" × 60" on expressways and freeways
California / Field Use Notes
California applies the flagger symbol warning with Caltrans flagging procedures, commonly paired with BE PREPARED TO STOP and sized per Caltrans specifications.
In Los Angeles, this sign must conform to CA MUTCD 2026. Work in City of LA right-of-way is reviewed by StreetsLA and the Bureau of Engineering (BOE); state highways in LA County are permitted and reviewed by Caltrans District 7; county roads are permitted by LA County DPW. Sizes, retroreflectivity, and placement must meet CA MUTCD minimums — local agencies may require larger signs based on roadway class, speed, pedestrian volume, and proximity to schools or transit.
Common Plan Review Comments
- Sign not shown at the correct advance distance for the posted speed.
- Advance warning sign missing or out of sequence on the TCP.
- Wrong size specified for the roadway classification (conventional vs. expressway).
- Sign sheeting / retroreflectivity class not noted on the plan.
Confirm California flagging-station signing, sizing, and sheeting meet CA MUTCD and Caltrans practice. Public Ready reviews California flagging signs.
Related Signs
View All W-Series Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Written against California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition. Official sources last verified June 2026.
