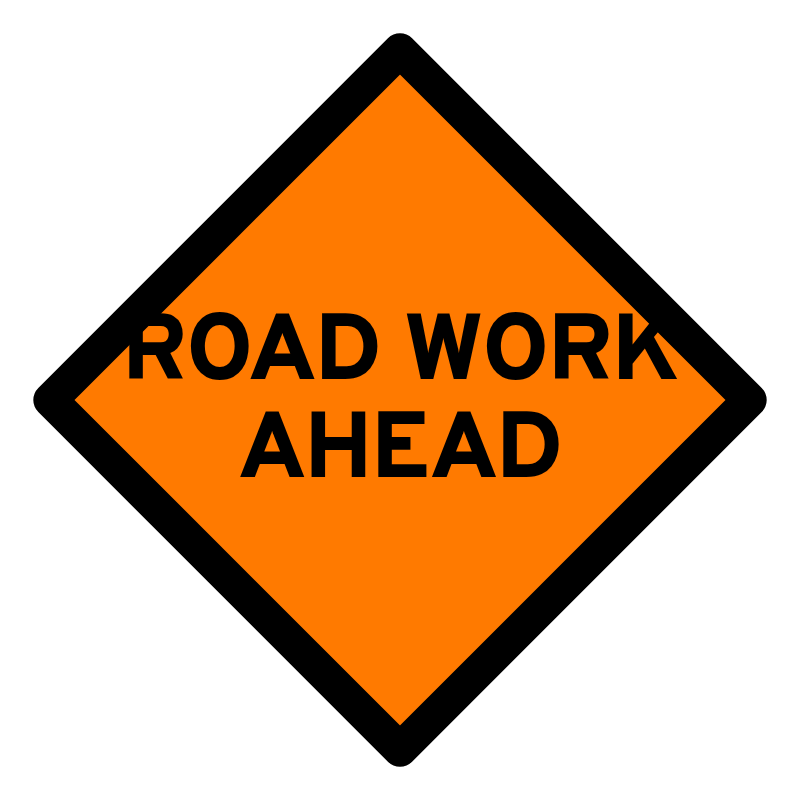

W20-1 Road Work Ahead
Warns approaching drivers that a work operation is taking place on or near the roadway ahead so they can slow down and stay alert for changing conditions.
- Sign Name
- Road Work Ahead
- MUTCD Code
- W20-1
- Official designation
- Road Work (with distance) — FHWA SHS 2024, App. B5-20
- Sign Category
- Warning Signs
Specifications
- Shape
- Diamond
- Color / legend
- Orange background, black legend
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions are side lengths of the diamond, not its corner-to-corner span.

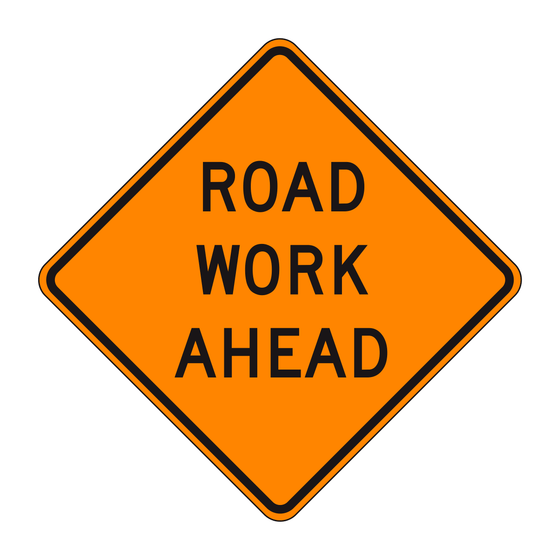

- Layout 130" × 30"
- Layout 236" × 36"
- Layout 348" × 48"
California Application & Variants
W20-1 is the federal ROAD (STREET) WORK designation used in California. Under CA MUTCD 2026 Section 6H.03, RAMP WORK AHEAD C23(CA) may substitute where applicable. ROAD may be changed to STREET; the distance legend may be XX FEET, XX MILES or AHEAD.
When & Where It's Used
- Lead advance warning sign on lane and shoulder work setups
- Paired with a distance plaque (e.g. AHEAD or a stated distance)
- Used on streets, highways, and within local agency right-of-way permits
Placement Context
- Where it sits
- Advance warning area, ahead of the work.
- CA MUTCD reference
- CA MUTCD 2026 Chapter 6H — TTC Zone Warning Signs
Related Signs
Browse Warning Signs
