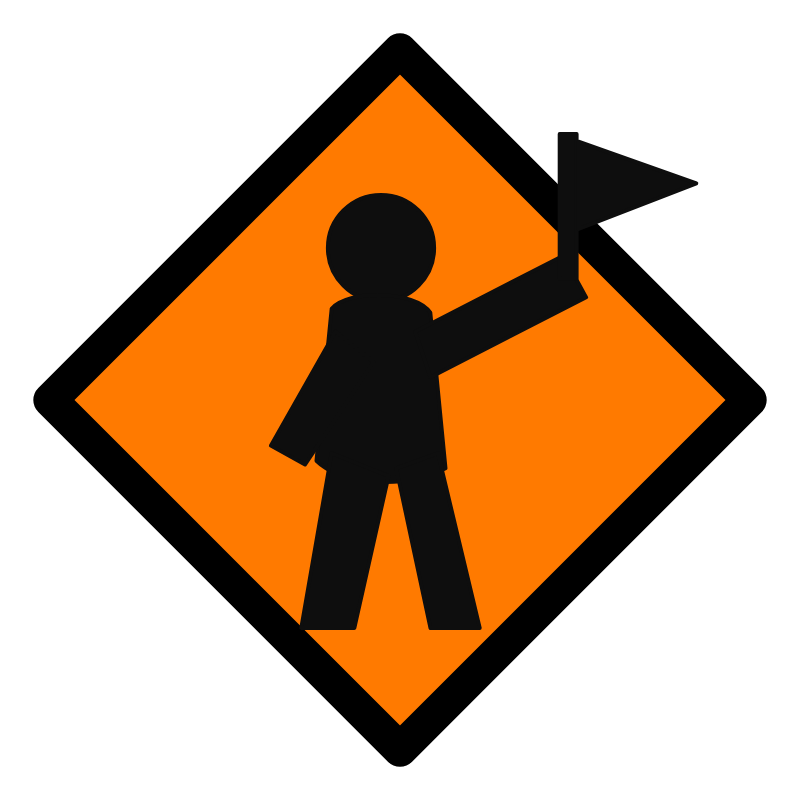

W20-7 Flagger (symbol) — sign artwork
View Sizes & DimensionsW20-7 Requirements & Application Notes

W20-7 Flagger (symbol)

Uses a flagger symbol to warn drivers that a flagger is controlling traffic ahead and that they must be prepared to stop or follow the flagger's directions.

Sign Name
Flagger (symbol)
MUTCD Code
W20-7
Official designation
Flagger (symbol) — FHWA Standard Highway Signs 2024 Release 3 (issued 12/20/24), sheet 5-30; official artwork, 48" × 48" variant
Sign Category
Warning Signs

Quick Downloads

View all sign downloads
PNGBranded sign imageDownload PDFBranded sign sheetDownload LayoutW20-7 layout & dimensionsOpen MUTCDCA MUTCD (Caltrans)Open

Specifications

Shape
Diamond
Color / legend
Orange background, black flagger symbol

Sizes & Dimensions (inches)

These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.

Dimensions are side lengths of the diamond, not its corner-to-corner span.

  • Layout 130" × 30"
  • Layout 236" × 36"
  • Layout 348" × 48"
View dimensions and source

When & Where It's Used

  • Flagging stations on lane closures and one-lane operations
  • Paired with W3-4 BE PREPARED TO STOP
  • Used with pilot-car operations on two-lane roads

Placement Context

Where it sits
Approach to the activity area.
CA MUTCD reference
CA MUTCD 2026 Chapter 6H — TTC Zone Warning Signs
