W10-16 Another Train Coming — Activated Display
Uses a train-activated display to warn that another train is coming.
- Sign Name
- Another Train Coming — Activated Display
- MUTCD Code
- W10-16
- Sign Category
- Warning Signs
Specifications
- Shape
- Square
- Color / legend
- Yellow illuminated legend on black background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Use California Table 8B-1 and its notes for roadway selection; pathway/sidewalk applications also reference Table 9A-1. Federal drawing sizes do not establish California installation minimums.
- Official drawing size30" × 30"
California Application & Variants

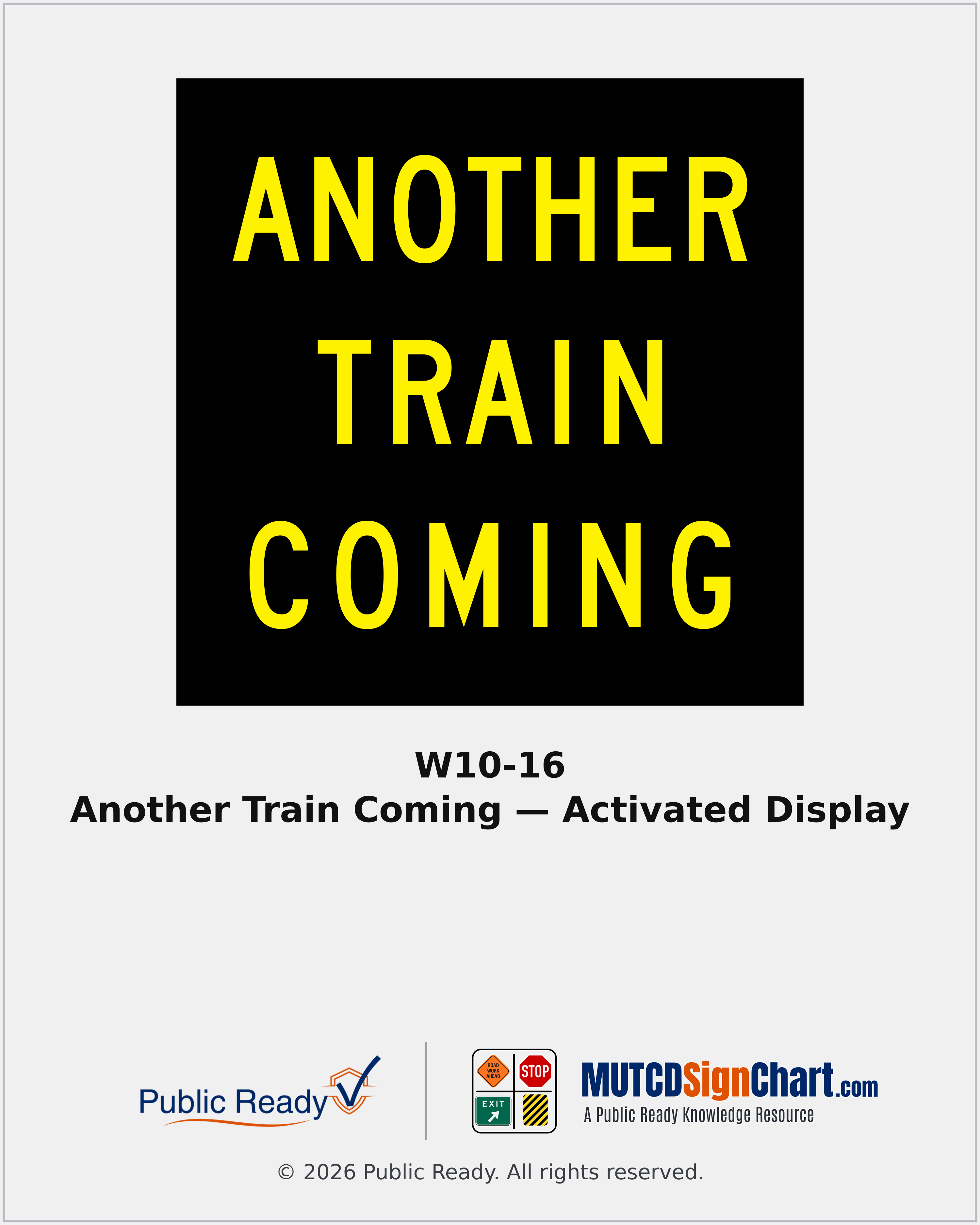

The image shows the activated, illuminated ANOTHER TRAIN COMING message on black. Section 8B.18 addresses diagnostic-team evaluation and CPUC approval for this active display.
Size selection: Use California Table 8B-1 and its notes for roadway selection; pathway/sidewalk applications also reference Table 9A-1. Federal drawing sizes do not establish California installation minimums.
When & Where It's Used
- Railroad or light rail crossing review
Placement Context
- Where it sits
- The image shows the activated, illuminated ANOTHER TRAIN COMING message on black. Section 8B.18 addresses diagnostic-team evaluation and CPUC approval for this active display..
- CA MUTCD reference
- CA MUTCD 2026 §8B.18
Related Signs
Browse Warning Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
