W10-1 Railroad Crossing Advance Warning
Gives advance warning of a railroad grade crossing.
- Sign Name
- Railroad Crossing Advance Warning
- MUTCD Code
- W10-1
- Sign Category
- Warning Signs
Specifications
- Shape
- Circle
- Color / legend
- Black legend and border on yellow background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Use California Table 8B-1 and its notes for roadway selection; pathway/sidewalk applications also reference Table 9A-1. Federal drawing sizes do not establish California installation minimums.
- Official drawing size24" diameter
- Official drawing size30" diameter
- Official drawing size36" diameter
- Official drawing size48" diameter
California Application & Variants

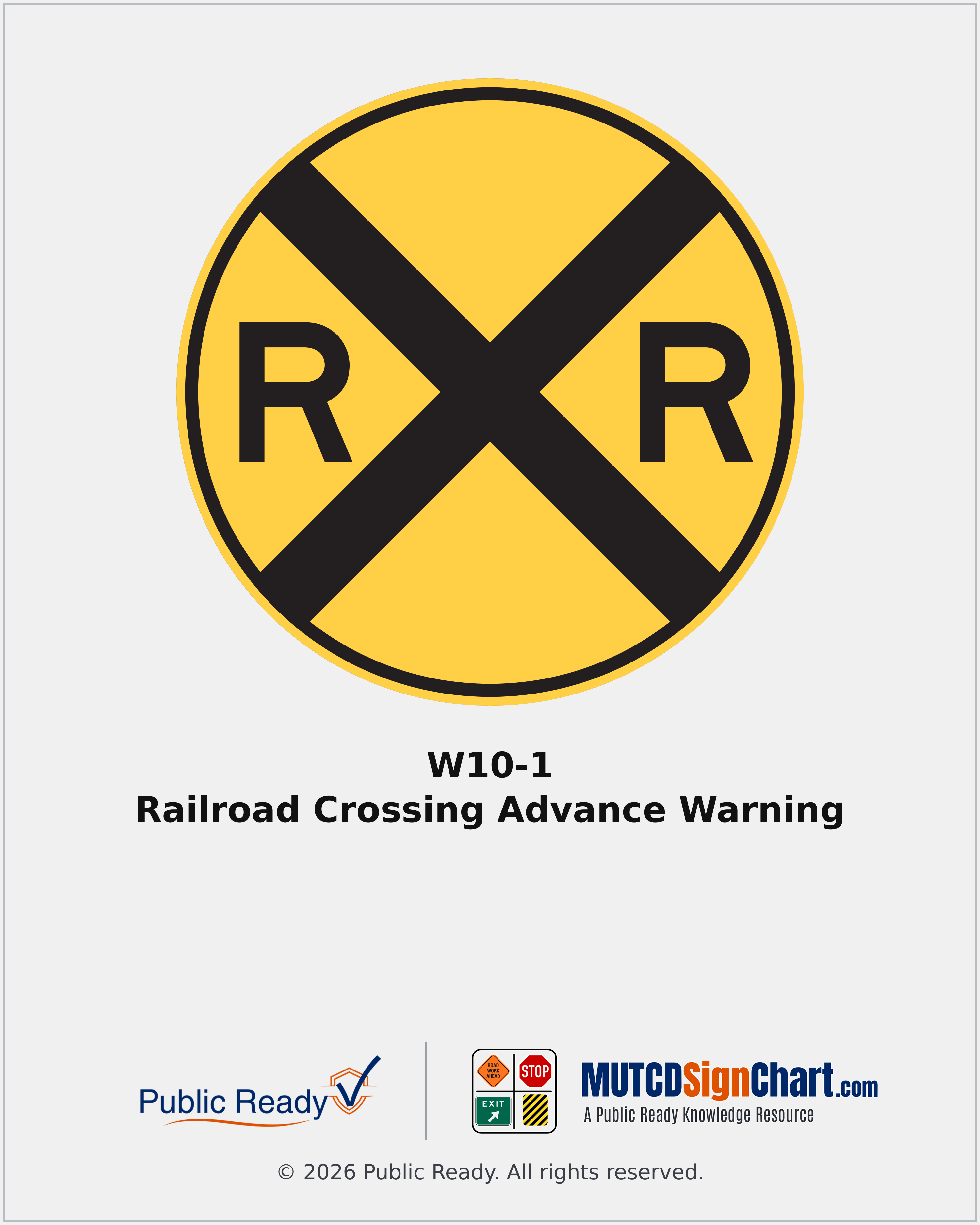

Round yellow railroad advance-warning sign with a black cross and two R letters. California Table 8B-1 lists roadway sizes of 36 and 48 inches in diameter.
Size selection: Use California Table 8B-1 and its notes for roadway selection; pathway/sidewalk applications also reference Table 9A-1. Federal drawing sizes do not establish California installation minimums.
When & Where It's Used
- Railroad or light rail crossing review
Placement Context
- Where it sits
- Round yellow railroad advance-warning sign with a black cross and two R letters. California Table 8B-1 lists roadway sizes of 36 and 48 inches in diameter..
- CA MUTCD reference
- CA MUTCD 2026 §8B.06
Related Signs
Browse Warning Signs
