Posts the maximum legal speed for the roadway, establishing the enforceable speed limit drivers must not exceed.
MUTCD-style sign reference illustration. Always verify against the official CA MUTCD and Caltrans sign charts.
| Sign code | R2-1 |
|---|---|
| Federal code | R2-1 |
| Name | Speed Limit |
| Category | Regulatory Signs |
| Shape | Rectangle (Vertical) |
| Color | White background, black legend |
| California status | Used in California per CA MUTCD |
| Typical CA minimum size | 24" × 30" |
The official dimensioned layout drawings below show the exact border widths, legend and letter heights, spacing, corner radius, and the standard sizes used to fabricate R2-1. Use them to confirm sign sizing for your road type before finalizing a traffic control plan.
| Application | Size |
|---|---|
| Standard | 24" × 30" |
Source: CA MUTCD Part 2B (Table 2B-1). Confirm the exact size for your road type and speed against the current CA MUTCD and the official layout drawing.

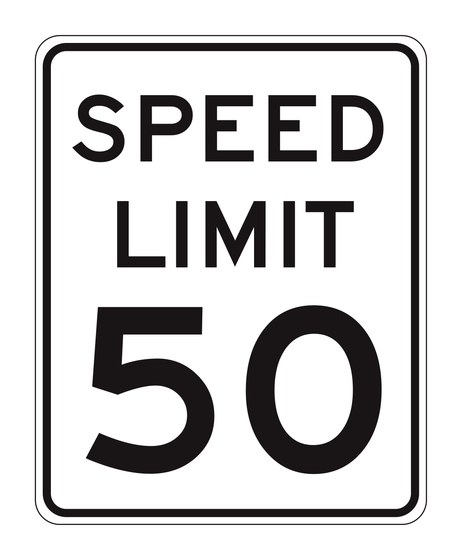

Layout drawing extracted from the FHWA Standard Highway Signs (public domain). Verify exact dimensions and sizes against the current CA MUTCD, Caltrans sign specifications, and Standard Plans for your application.
Download this sign or open the official MUTCD reference.
Official source: FHWA Standard Highway Signs, 2024 (11th Edition) — Regulatory signs.
This is an educational reference. Verify sign use, size, placement, and application against the current CA MUTCD, Caltrans sign specifications, Standard Plans, and the reviewing agency. Official source links are gathered in one place.
View official sourcesPosts the maximum legal speed for the roadway, establishing the enforceable speed limit drivers must not exceed.
Posts the maximum legal speed for the roadway, establishing the enforceable speed limit drivers must not exceed. In the field, R2-1 Speed Limit is typically positioned at the point of regulation within the activity area. Common deployments include posting reduced work-zone speed limits; established under the proper speed-setting authority; used with work-zone warning signing. Always confirm its size, retroreflective sheeting, spacing, and placement against the CA MUTCD 2026 and the reviewing agency before finalizing the traffic control plan.
Used in California where a reduced work-zone speed limit is established through the proper authority, posted to set the temporary limit through the area.
Common field deployments
Agency review note
StreetsLA, LA County DPW, and Caltrans District 7 may require larger sizes or additional devices. Verify with the reviewing agency before finalizing the TCP.
Typical minimum: 24" × 30".
Sizes are CA MUTCD minimums and vary by roadway classification and speed. Verify against the CA MUTCD 2026 (CA MUTCD Part 2B (Regulatory Signs)), Caltrans sign specifications, and the reviewing agency.
Where it sits: Point of regulation within the activity area.
CA MUTCD reference: CA MUTCD Part 2B (Regulatory Signs).
In Los Angeles, temporary regulatory changes (speed, one-way, turn or entry restrictions) generally involve LADOT review, and on state highways Caltrans District 7. Regulatory authority cannot be created by signing alone — confirm the change is authorized by the agency with jurisdiction over the roadway.
Confirm any reduced limit is properly authorized and posted; speed cannot be lowered by signing alone. Public Ready reviews work-zone speed documentation.
These signs are typically deployed alongside R2-1 on a California TCP.
