W9-3 Interior Lane Shift Ahead

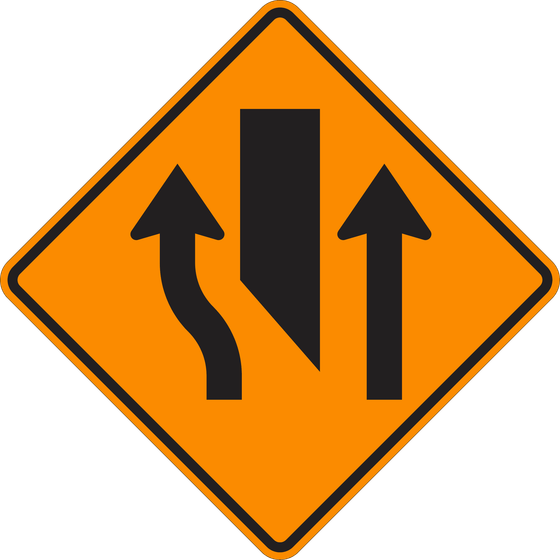

Warns of an interior lane shift ahead in a temporary traffic arrangement. The arrows show the changed paths through the lane configuration.
- Sign Name
- Interior Lane Shift Ahead
- MUTCD Code
- W9-3
- Sign Category
- Warning Signs
Specifications
- Shape
- Diamond
- Color / legend
- Orange background, black legend
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions are side lengths of the diamond, not its corner-to-corner span.
- Layout 130" × 30"
- Layout 236" × 36"
- Layout 348" × 48"
Placement Context
- Where it sits
- At the location specified for this warning sign; advance spacing depends on the condition, speed, and sight distance.
- CA MUTCD reference
- CA MUTCD 2026 Chapter 6H — TTC Zone Warning Signs
Related Signs
Browse Warning Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
