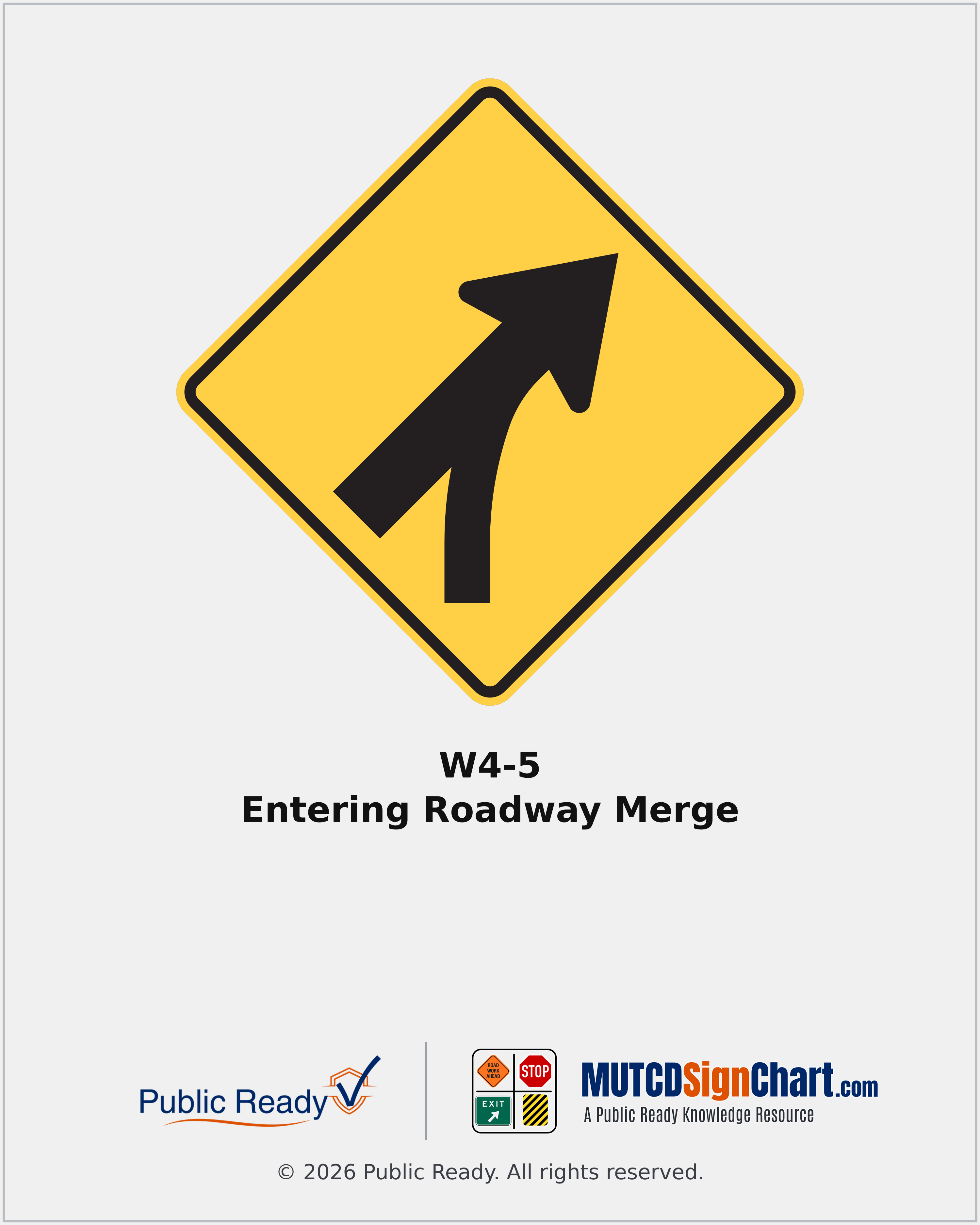

W4-5 Entering Roadway Merge
Warns traffic on a curving entering roadway of the approaching merge.
- Sign Name
- Entering Roadway Merge
- MUTCD Code
- W4-5
- Sign Category
- Warning Signs
Specifications
- Shape
- Diamond
- Color / legend
- Black legend and border on yellow background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions verified against the official drawing. Diamond dimensions are nominal side lengths. Select the required application size from the California manual; drawing sizes alone do not establish a permitted minimum.
- Official drawing size36" × 36"
- Official drawing size48" × 48"
California Application & Variants
Use on a curving entering roadway to portray the actual approach geometry. Match the direction to the site; the displayed original is the right-oriented example. Where appropriate, the No Merge Area plaque can identify an abrupt merge without an acceleration lane.
When & Where It's Used
- Roadway geometry and traffic-control review
Placement Context
- Where it sits
- Select placement using the actual approach, sight distance, applicable California manual provisions, and responsible agency requirements..
- CA MUTCD reference
- CA MUTCD 2026 §2C.45
Related Signs
Browse Warning Signs
