W10-5 Low Ground Clearance at Railroad Crossing

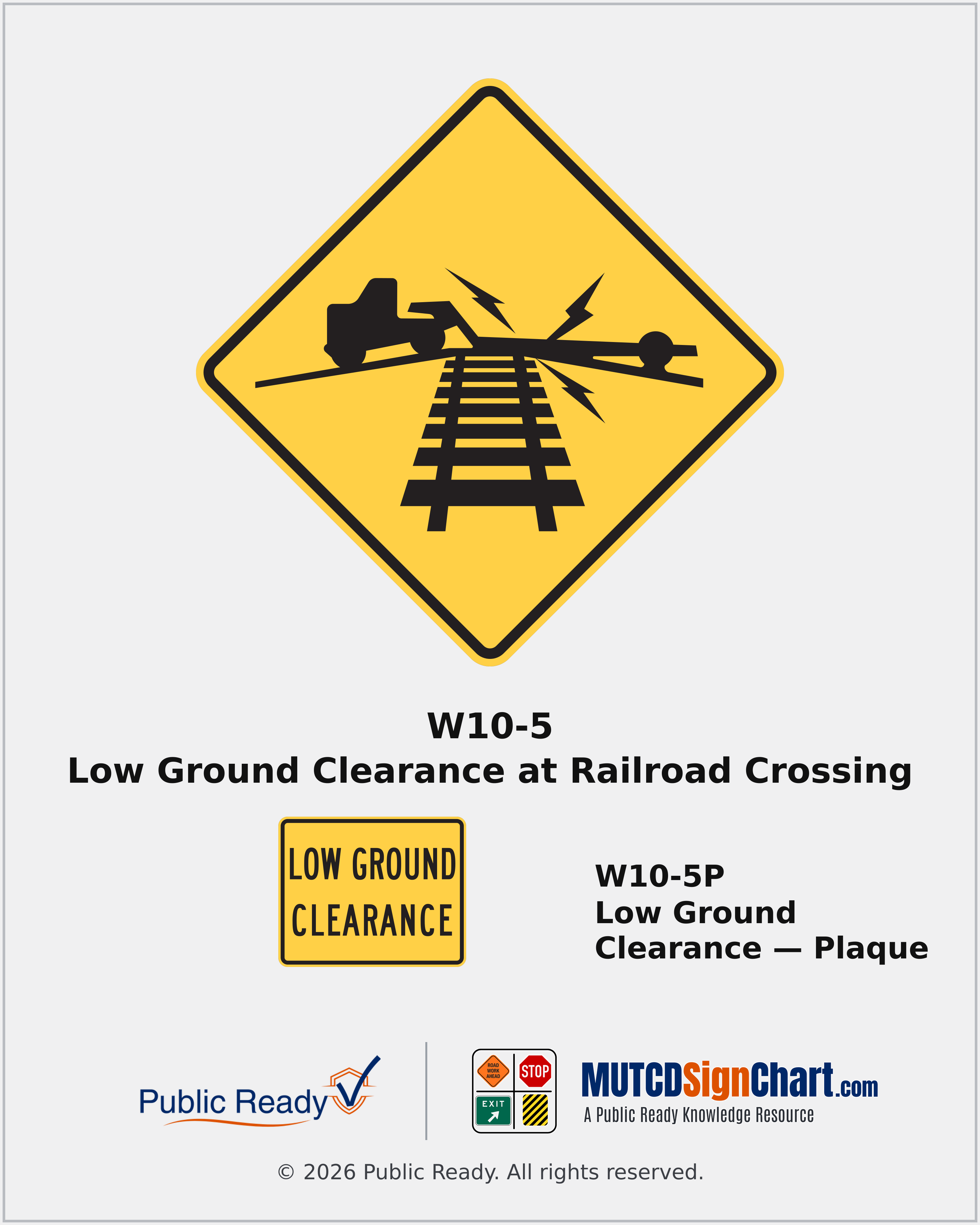

Warns that a grade crossing profile can cause low-clearance vehicles to hang up.
- Sign Name
- Low Ground Clearance at Railroad Crossing
- MUTCD Code
- W10-5
- Sign Category
- Warning Signs
Specifications
- Shape
- Diamond
- Color / legend
- Black legend and border on yellow background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Use California Table 8B-1 and its notes for roadway selection; pathway/sidewalk applications also reference Table 9A-1. Federal drawing sizes do not establish California installation minimums.
- Official drawing size36" × 36"
- Official drawing size48" × 48"
California Application & Variants
Warns of a crossing profile that can affect vehicles with low ground clearance. California section 8B.16 calls for an educational plaque for at least three years after initial installation and addresses alternate-route guidance.
Size selection: Use California Table 8B-1 and its notes for roadway selection; pathway/sidewalk applications also reference Table 9A-1. Federal drawing sizes do not establish California installation minimums.
When & Where It's Used
- Railroad or light rail crossing review
Placement Context
- Where it sits
- Warns of a crossing profile that can affect vehicles with low ground clearance. California section 8B.16 calls for an educational plaque for at least three years after initial installation and addresses alternate-route guidance..
- CA MUTCD reference
- CA MUTCD 2026 §8B.16
