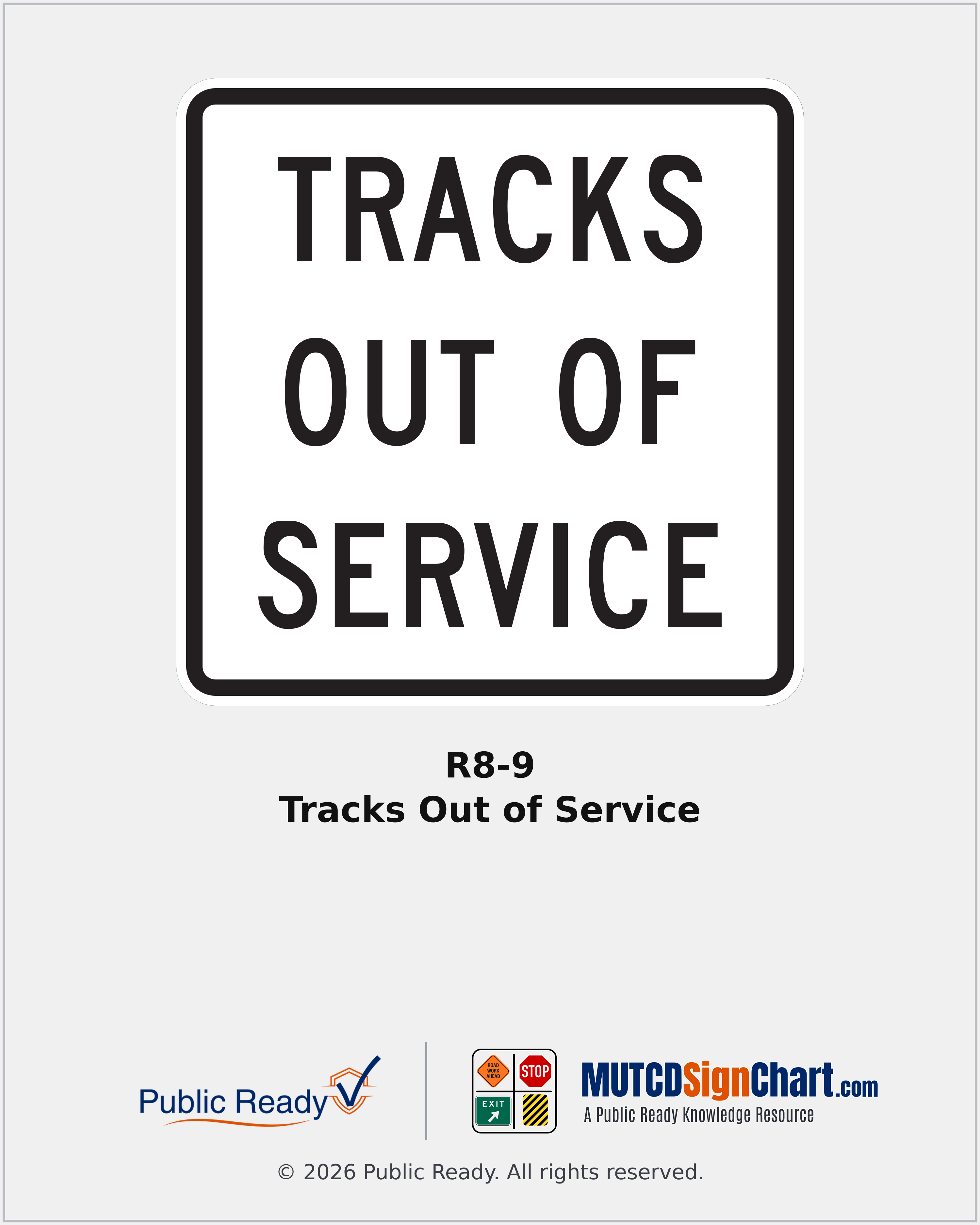

R8-9 Tracks Out of Service
Identifies a grade crossing whose railroad or light-rail tracks are out of service.
- Sign Name
- Tracks Out of Service
- MUTCD Code
- R8-9
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Square
- Color / legend
- Black legend and border on white background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions checked against the exact official drawing. Select by the applicable roadway or bicycle-facility requirements; displayed hours, fees, and other variable legends are examples.
- Official drawing size24" × 24"
- Official drawing size36" × 36"
California Application & Variants
Use only for tracks that are abandoned or disconnected, until removed or covered. Retain the Emergency Notification System sign and applicable physical-condition warnings. Remove this sign if the tracks return to service or are removed or paved over.
When & Where It's Used
- Emergency-stop or grade-crossing review
Placement Context
- Where it sits
- At the location and facing the approach identified by the linked manual; match any directional arrow to the actual assembly..
- CA MUTCD reference
- CA MUTCD 2026 §8B.08
