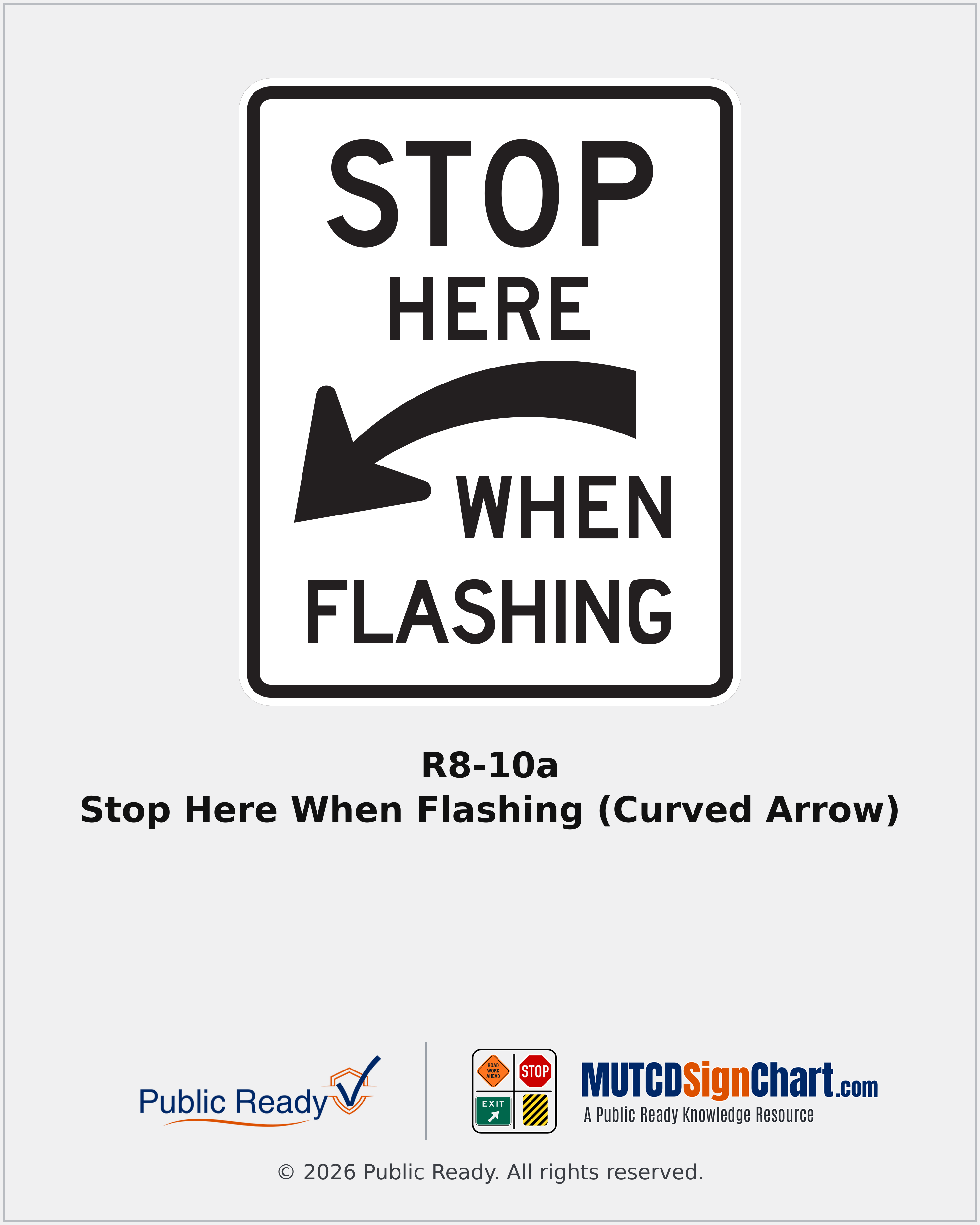

R8-10a Stop Here When Flashing (Curved Arrow)
Identifies the stopping point at an active grade crossing using a curved arrow.
- Sign Name
- Stop Here When Flashing (Curved Arrow)
- MUTCD Code
- R8-10a
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Black legend and border on white background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions checked against the exact official drawing. Select by the applicable roadway or bicycle-facility requirements; displayed hours, fees, and other variable legends are examples.
- Official drawing size24" × 30"
- Official drawing size36" × 42"
California Application & Variants
Use the current Release 4 drawing. The displayed left-arrow face is one official directional option; select the correct arrow for the actual stopping point.
When & Where It's Used
- Emergency-stop or grade-crossing review
Placement Context
- Where it sits
- At the location and facing the approach identified by the linked manual; match any directional arrow to the actual assembly..
- CA MUTCD reference
- CA MUTCD 2026 §8B.09
Related Signs
Browse Regulatory Signs
