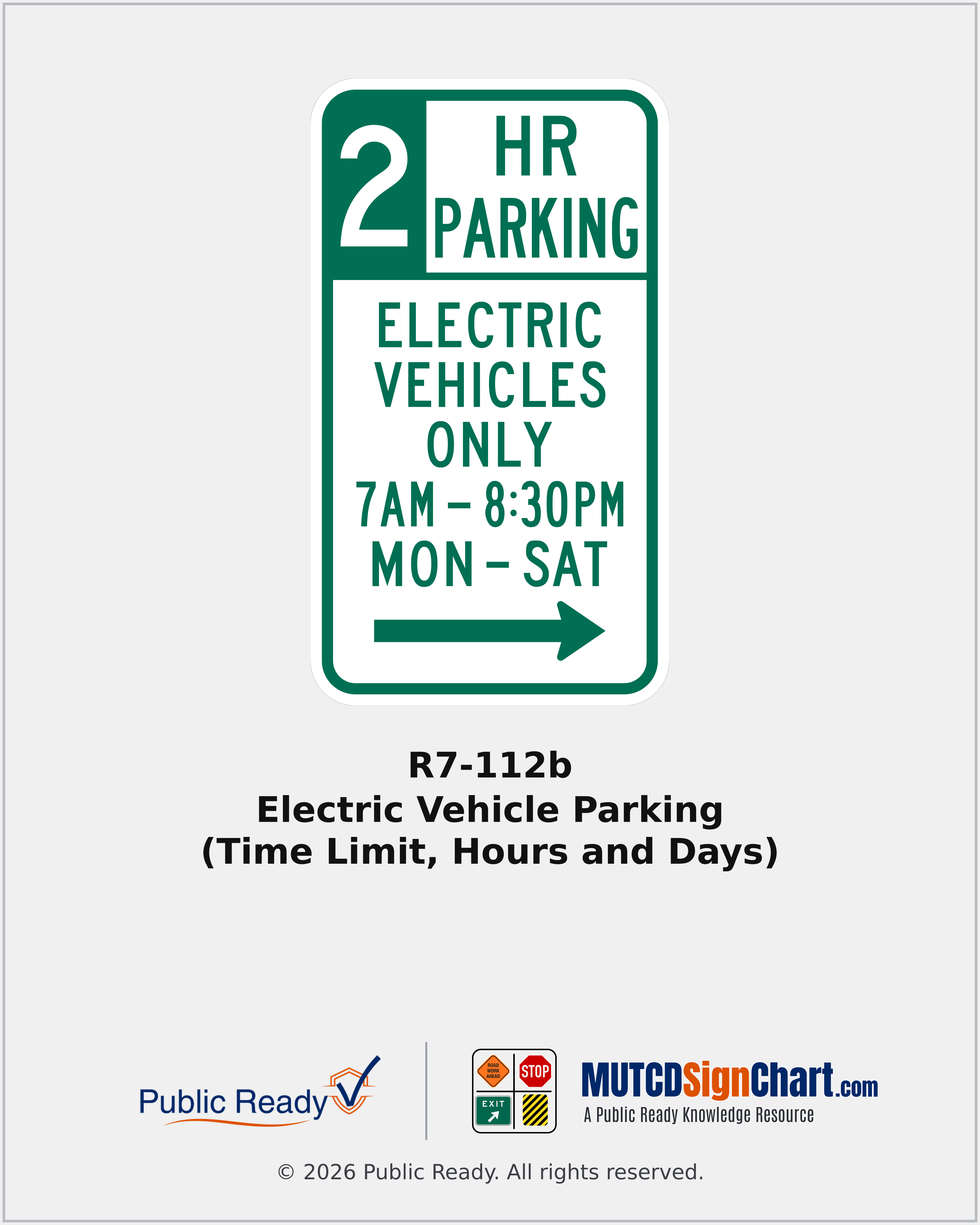

R7-112b Electric Vehicle Parking (Time Limit, Hours and Days)
Permits electric-vehicle parking for a stated duration during specified hours and days.
- Sign Name
- Electric Vehicle Parking (Time Limit, Hours and Days)
- MUTCD Code
- R7-112b
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Green legend and border on white background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions checked against the exact official drawing. Select by the applicable roadway or bicycle-facility requirements; displayed hours, fees, and other variable legends are examples.
- Official drawing size12" × 21"
California Application & Variants
The extra schedule line is part of this taller design. Use the adopted duration, hours, and days; do not treat the sample schedule as a legal limit.
When & Where It's Used
- Parking-zone and curb-use review
Placement Context
- Where it sits
- At the designated parking space, zone, or payment station; use arrows and sign orientation appropriate to the limits of the regulation..
- CA MUTCD reference
- CA MUTCD 2026 §2B.53
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
