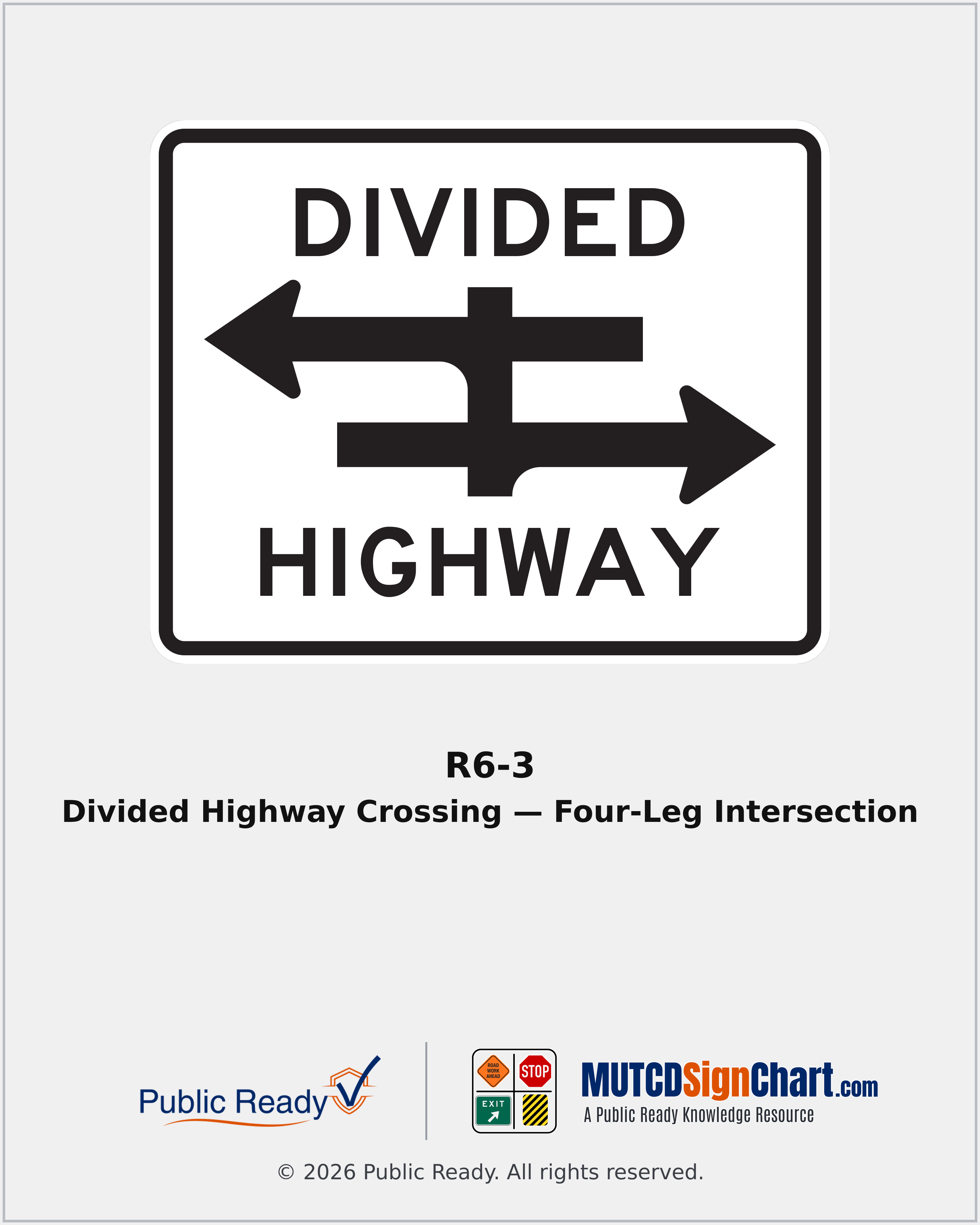

R6-3 Divided Highway Crossing — Four-Leg Intersection
Indicates a divided-highway crossing at a four-leg intersection.
- Sign Name
- Divided Highway Crossing — Four-Leg Intersection
- MUTCD Code
- R6-3
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Horizontal)
- Color / legend
- Black legend and border on white background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions checked against the exact official dimensioned drawing and matching size-specific clean artwork. Select the required size for the actual California roadway and installation.
- Official drawing size30" × 24"
- Official drawing size36" × 30"
California Application & Variants
Use R6-3 for a four-leg intersection. Check section 2B.50 for crossing configuration, applicable exceptions and placement beneath STOP or YIELD or on a separate support. This federal code is distinct from R6-3(CA).
When & Where It's Used
- Regulatory signing review
Placement Context
- Where it sits
- Use R6-3 for a four-leg intersection. Check section 2B.50 for crossing configuration, applicable exceptions and placement beneath STOP or YIELD or on a separate support. This federal code is distinct from R6-3(CA)..
- CA MUTCD reference
- CA MUTCD 2026 §2B.50
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
