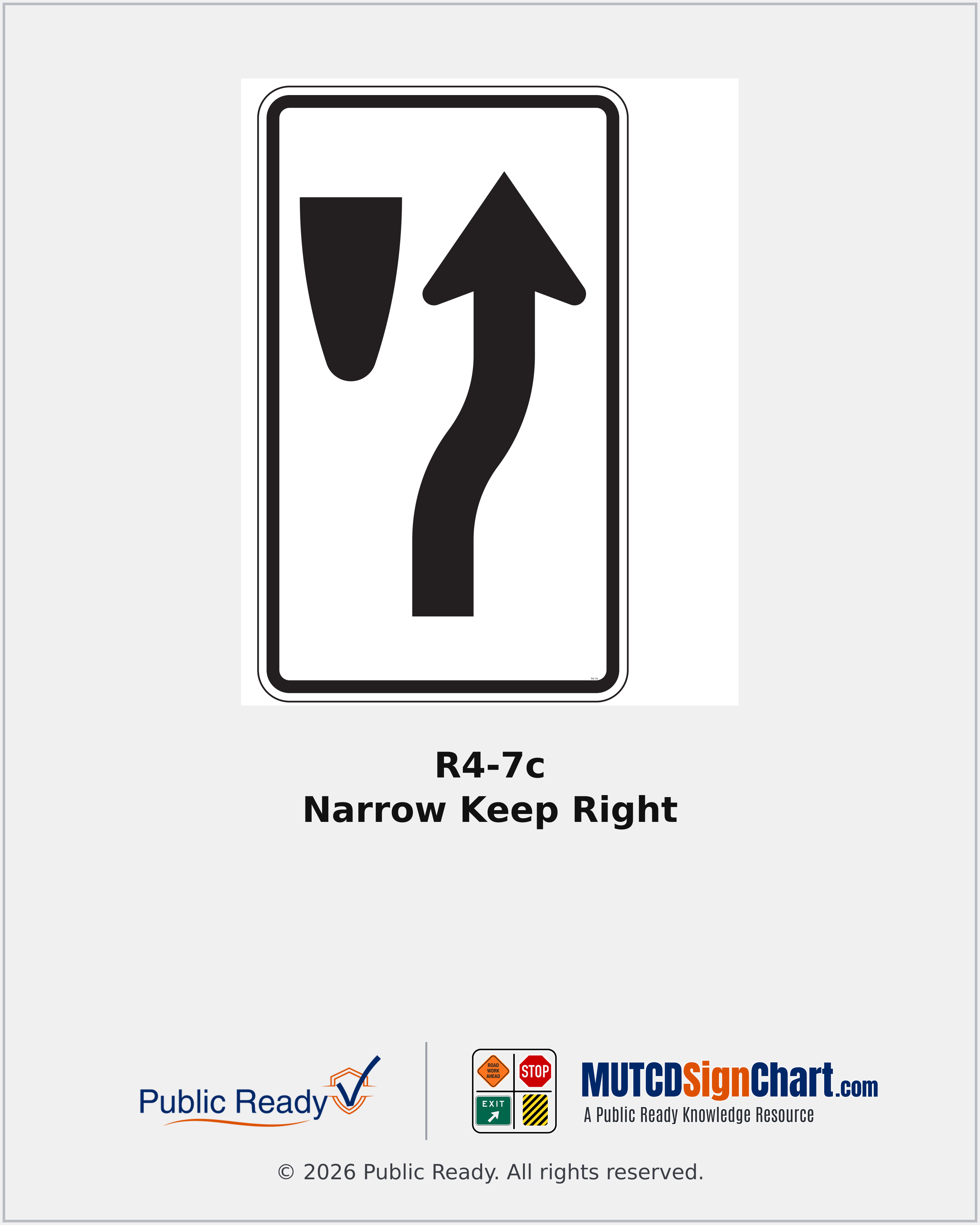

R4-7c Narrow Keep Right
Directs traffic to pass to the right of an obstruction using the narrow symbol design.
- Sign Name
- Narrow Keep Right
- MUTCD Code
- R4-7c
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Black legend and border on white background
Sizes & Dimensions (inches)
These sizes are listed in the linked California MUTCD table. Use the applicable roadway column and confirm the approved design and fabrication details with the roadway authority.
Sign face extracted from the adopted California manual figure; sizes from Table 2B-1. No dimensioned fabrication drawing is offered for this entry. Check road-type columns in the source table.
- CA MUTCD Table 2B-118" × 30"
California Application & Variants
Use on a median island less than four feet wide at the sign location. The manual prohibits this narrow design on islands four feet wide or wider.
When & Where It's Used
- Regulatory signing review
Placement Context
- Where it sits
- Use on a median island less than four feet wide at the sign location. The manual prohibits this narrow design on islands four feet wide or wider..
- CA MUTCD reference
- CA MUTCD 2026 §2B.39
