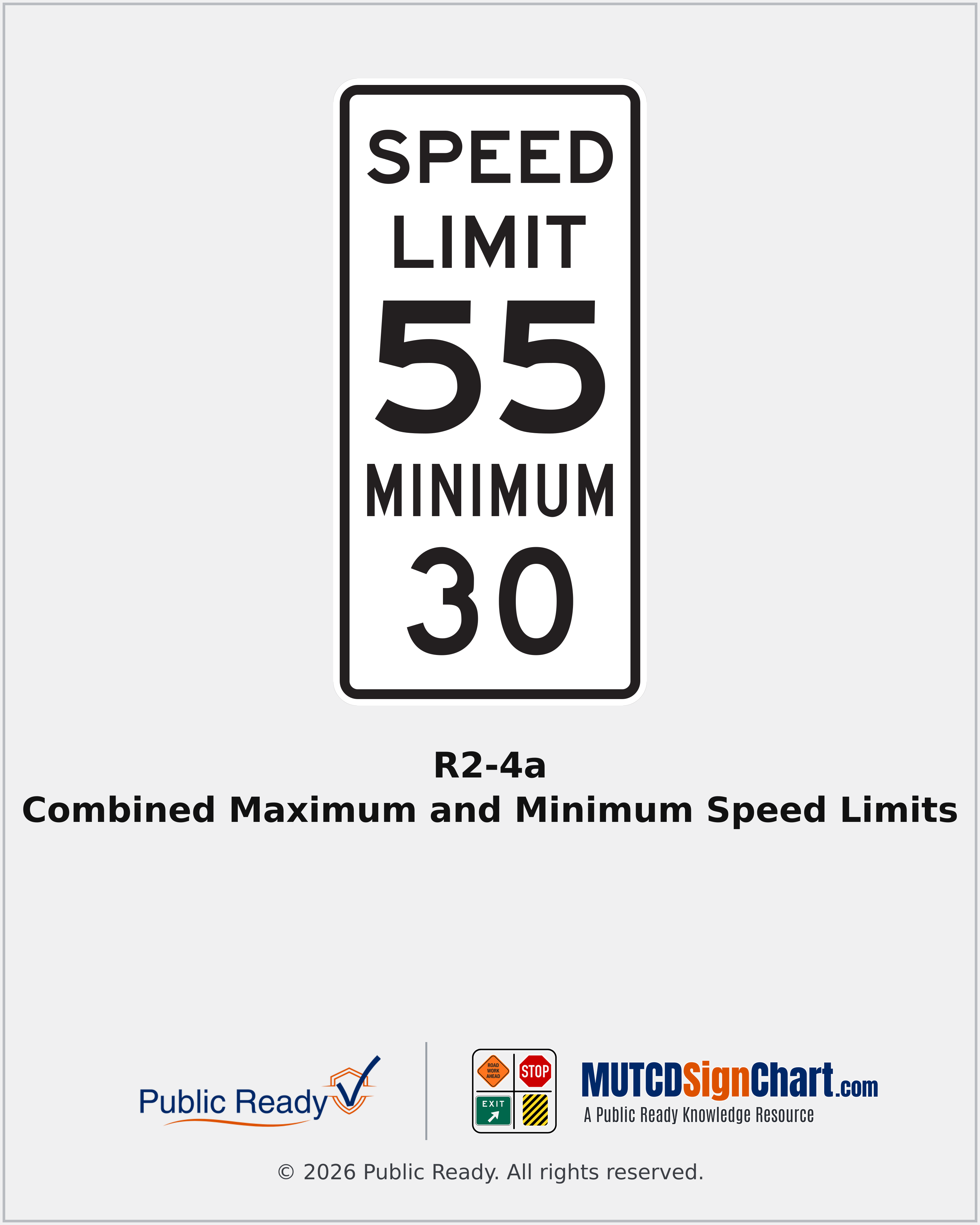

R2-4a Combined Maximum and Minimum Speed Limits
Combines maximum and minimum speed limits on one regulatory sign.
- Sign Name
- Combined Maximum and Minimum Speed Limits
- MUTCD Code
- R2-4a
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Black legend and border on white background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions transcribed from the exact official drawing and its size-specific artwork. Illustrated speeds, weights, fine amounts, and directional examples require project-specific selection.
- Official drawing size24" × 48"
- Official drawing size36" × 72"
- Official drawing size48" × 96"
California Application & Variants
Use where engineering judgment supports a minimum speed to address impeded traffic. Both illustrated values must match the authorized limits.
When & Where It's Used
- Regulatory signing review
Placement Context
- Where it sits
- Use where engineering judgment supports a minimum speed to address impeded traffic. Both illustrated values must match the authorized limits..
- CA MUTCD reference
- CA MUTCD 2026 §2B.24
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
