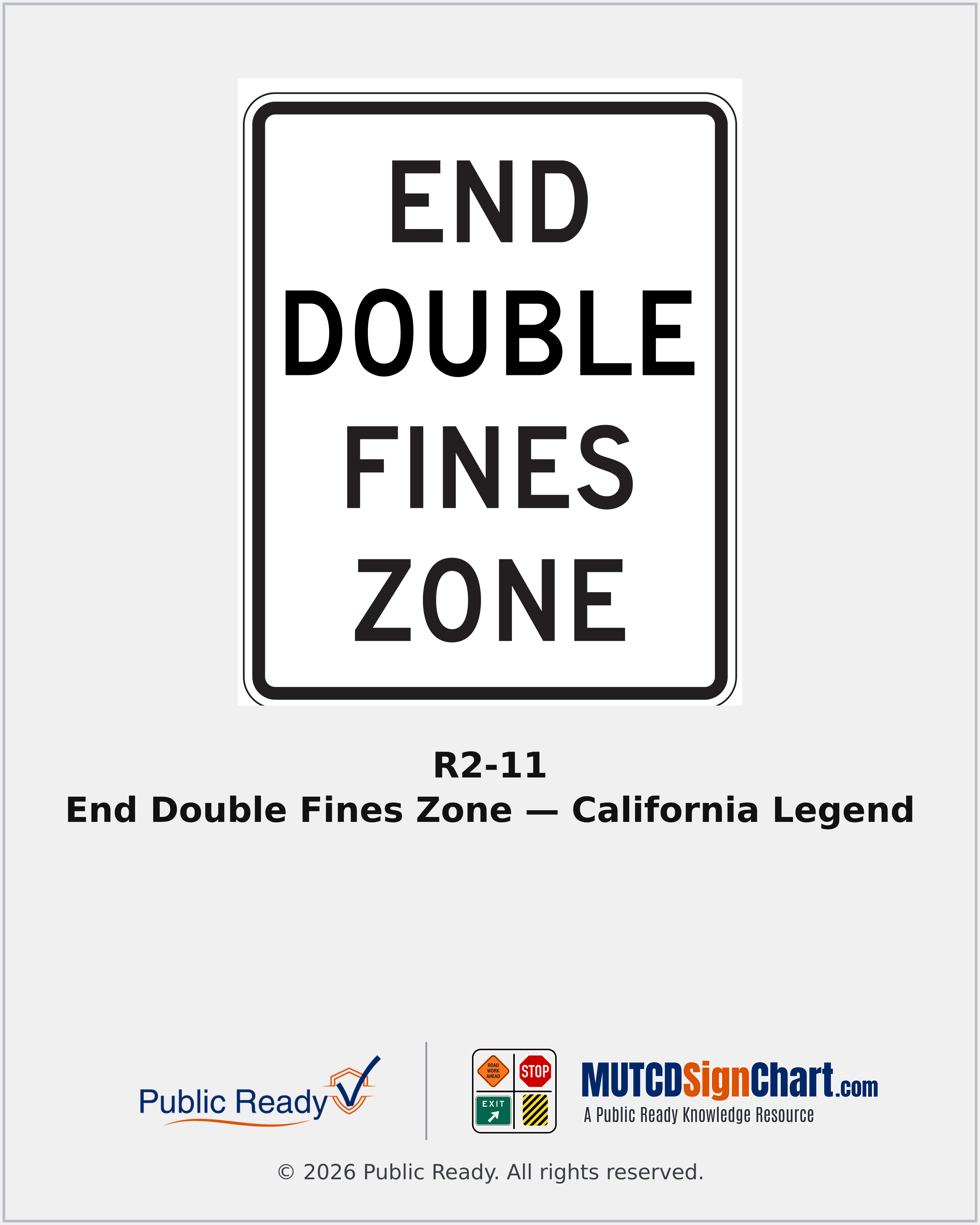

R2-11 End Double Fines Zone — California Legend
Marks the downstream end of the applicable designated double-fines zone.
- Sign Name
- End Double Fines Zone — California Legend
- MUTCD Code
- R2-11
- California designation
- Federal sign with a California layout variant
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Black legend and border on white background
Sizes & Dimensions (inches)
These sizes are listed in the linked California MUTCD table. Use the applicable roadway column and confirm the approved design and fabrication details with the roadway authority.
Sign face extracted from the adopted California manual figure; sizes from Table 2B-1. No dimensioned fabrication drawing is offered for this entry. Check road-type columns in the source table.
- CA MUTCD Table 2B-124" × 30"
- CA MUTCD Table 2B-130" × 36"
- CA MUTCD Table 2B-136" × 48"
- CA MUTCD Table 2B-148" × 60"
California Application & Variants
California Figure 2B-3 replaces HIGHER with DOUBLE under the same R2-11 designation. Coordinate this termination sign with the applicable beginning sign or plaque.
When & Where It's Used
- Regulatory signing review
Placement Context
- Where it sits
- California Figure 2B-3 replaces HIGHER with DOUBLE under the same R2-11 designation. Coordinate this termination sign with the applicable beginning sign or plaque..
- CA MUTCD reference
- CA MUTCD 2026 §2B.25
