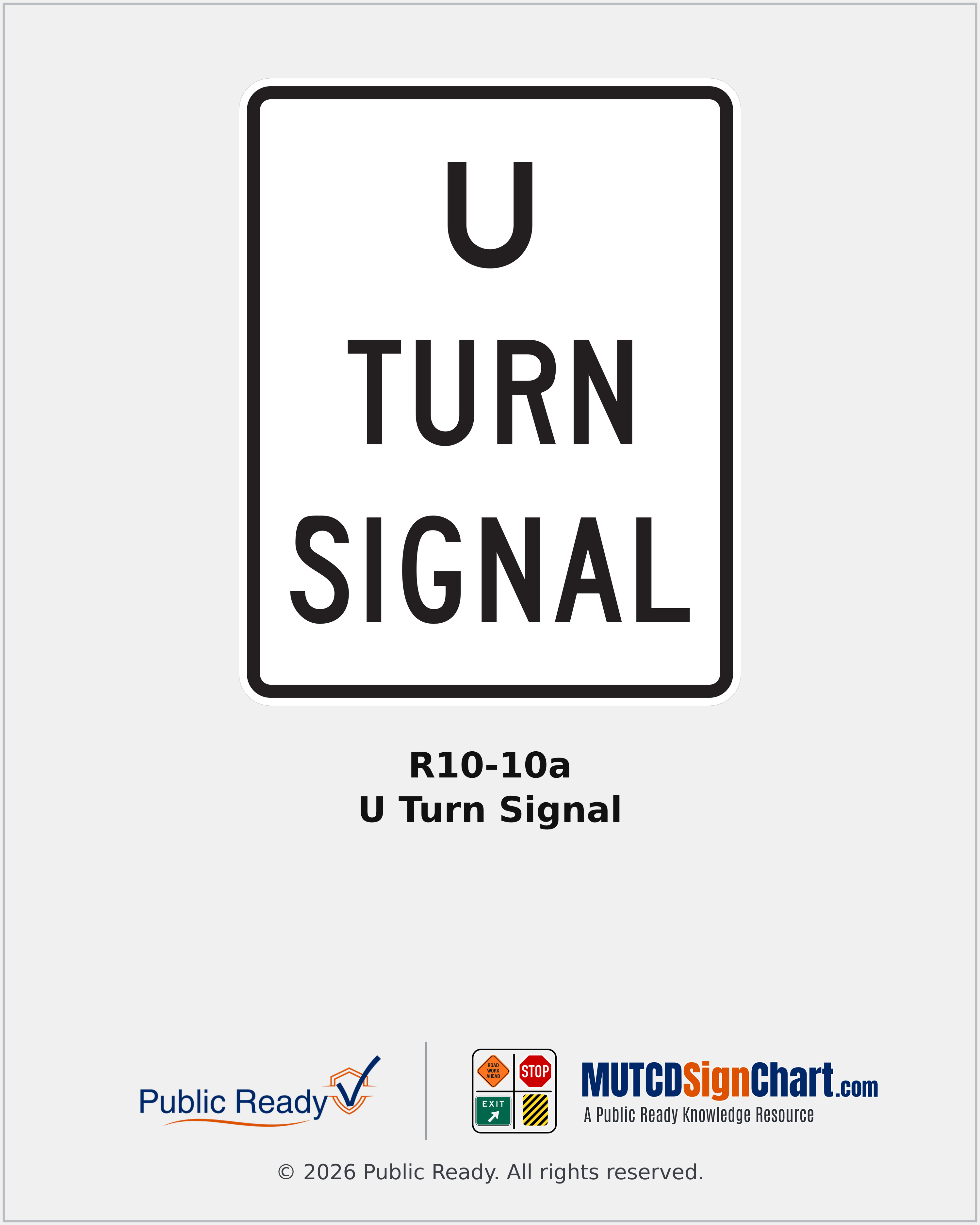

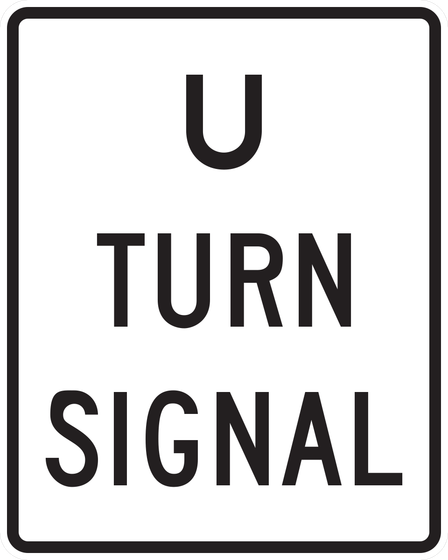

R10-10a U Turn Signal
Identifies a signal face that exclusively controls a U-turn movement.
- Sign Name
- U Turn Signal
- MUTCD Code
- R10-10a
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- White background, black legend and border
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Confirm that the signal actually provides exclusive U-turn control before selecting this sign.
- Drawing size 124" × 30"
- Drawing size 230" × 36"
When & Where It's Used
- Exclusive U-turn signal
Placement Context
- Where it sits
- Use adjacent to the signal face that exclusively controls the U-turn movement..
- CA MUTCD reference
- CA MUTCD 2026 §2B.59
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
