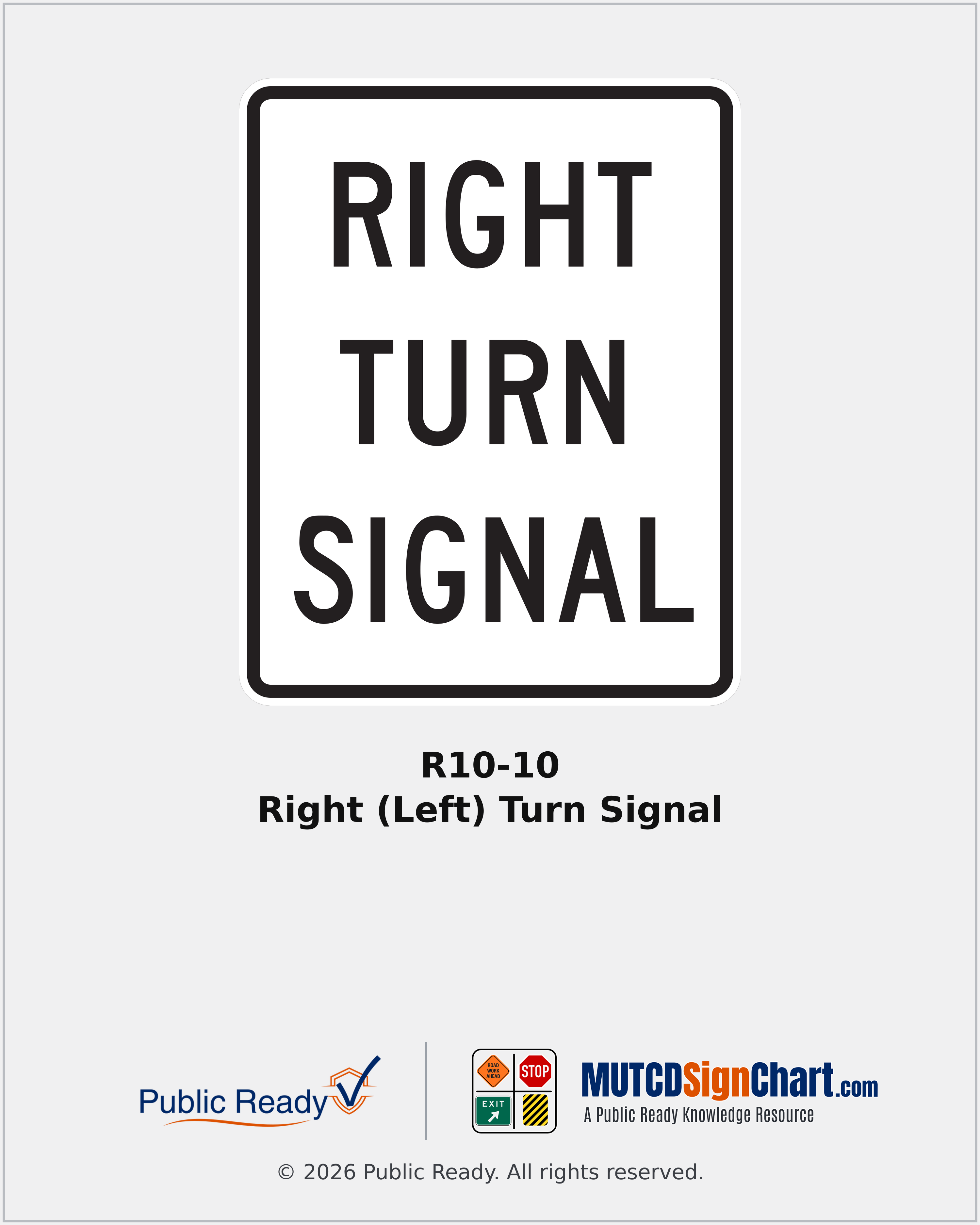

R10-10 Right (Left) Turn Signal
Identifies the traffic signal controlling the indicated turn movement.
- Sign Name
- Right (Left) Turn Signal
- MUTCD Code
- R10-10
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- White background, black legend and border
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
The displayed face is RIGHT TURN SIGNAL. The linked PDF includes separate right- and left-turn drawings.
- Drawing size 124" × 30"
- Drawing size 230" × 36"
When & Where It's Used
- Turn-signal identification
Placement Context
- Where it sits
- Locate the applicable turn-signal identification sign adjacent to that movement’s signal face..
- CA MUTCD reference
- CA MUTCD 2026 §2B.59
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
