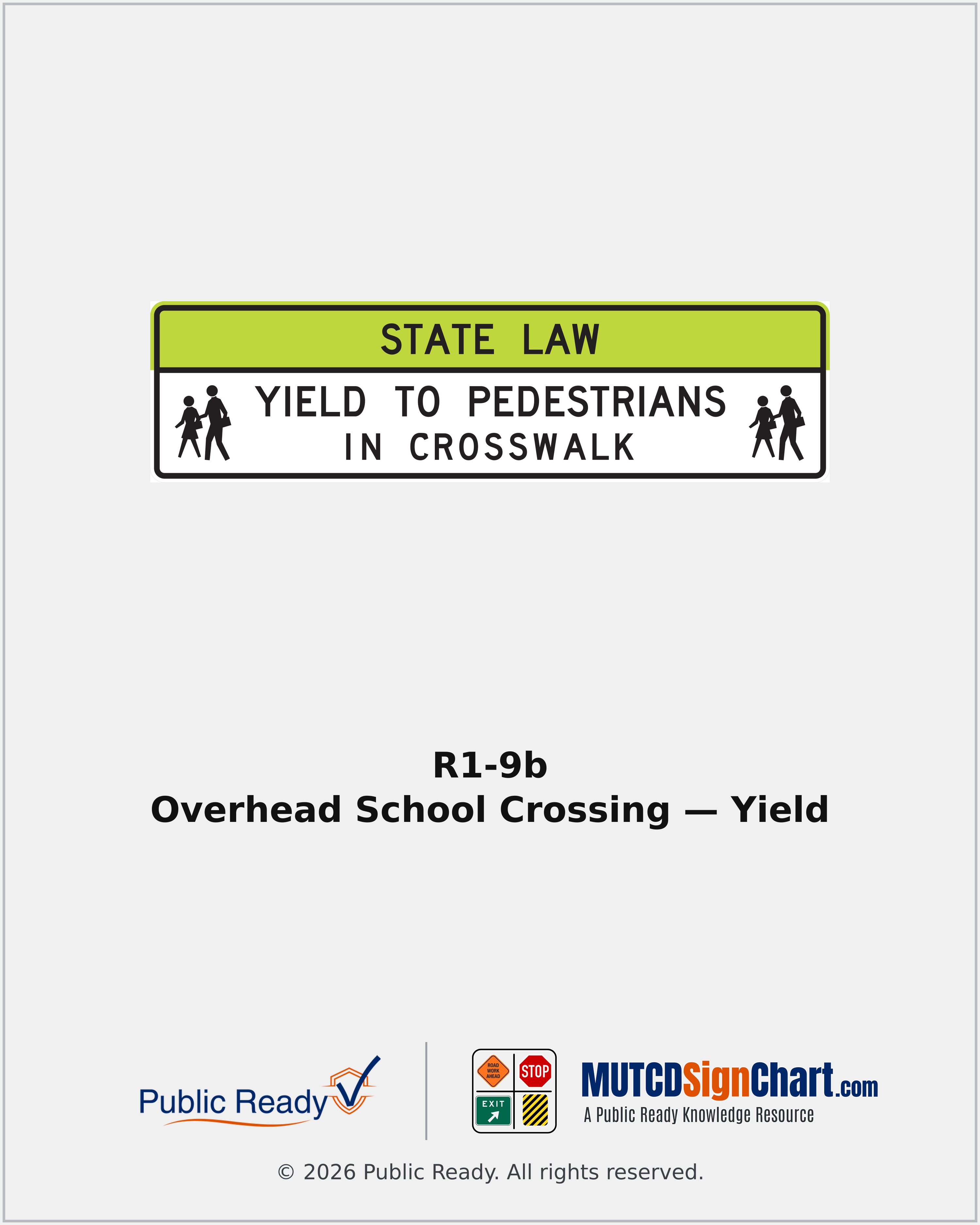

R1-9b Overhead School Crossing — Yield
Provides an overhead reminder to yield to schoolchildren in the crosswalk.
- Sign Name
- Overhead School Crossing — Yield
- MUTCD Code
- R1-9b
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Horizontal)

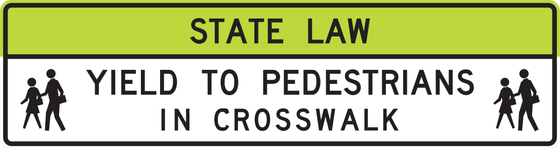

- Color / legend
- Fluorescent yellow-green header, white lower panel, black legend and border
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
CA MUTCD 7B.03 identifies overhead School Crosswalk Warning Assembly E(CA) as a modified R1-9; confirm the approved assembly with the roadway authority. The schoolchildren face is R1-9b. California crosses out the STOP counterpart R1-9c in Figure 7B-1.
- Drawing size 190" × 24"
California Application & Variants
CA MUTCD 7B.03 identifies overhead School Crosswalk Warning Assembly E(CA) as a modified R1-9; confirm the approved assembly with the roadway authority. The schoolchildren face is R1-9b. California crosses out the STOP counterpart R1-9c in Figure 7B-1.
When & Where It's Used
- School crossing control
Placement Context
- Where it sits
- Use at the school crosswalk with the approved overhead school-crossing arrangement.
- CA MUTCD reference
- CA MUTCD 2026 §7B.03
Related Signs
Browse Regulatory Signs
