R1-5d Yield Here to Trail Crossing
Identifies the advance yielding location for a trail crossing used by pedestrians and bicyclists.
- Sign Name
- Yield Here to Trail Crossing
- MUTCD Code
- R1-5d
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Black legend and border on white background; red YIELD symbol
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.

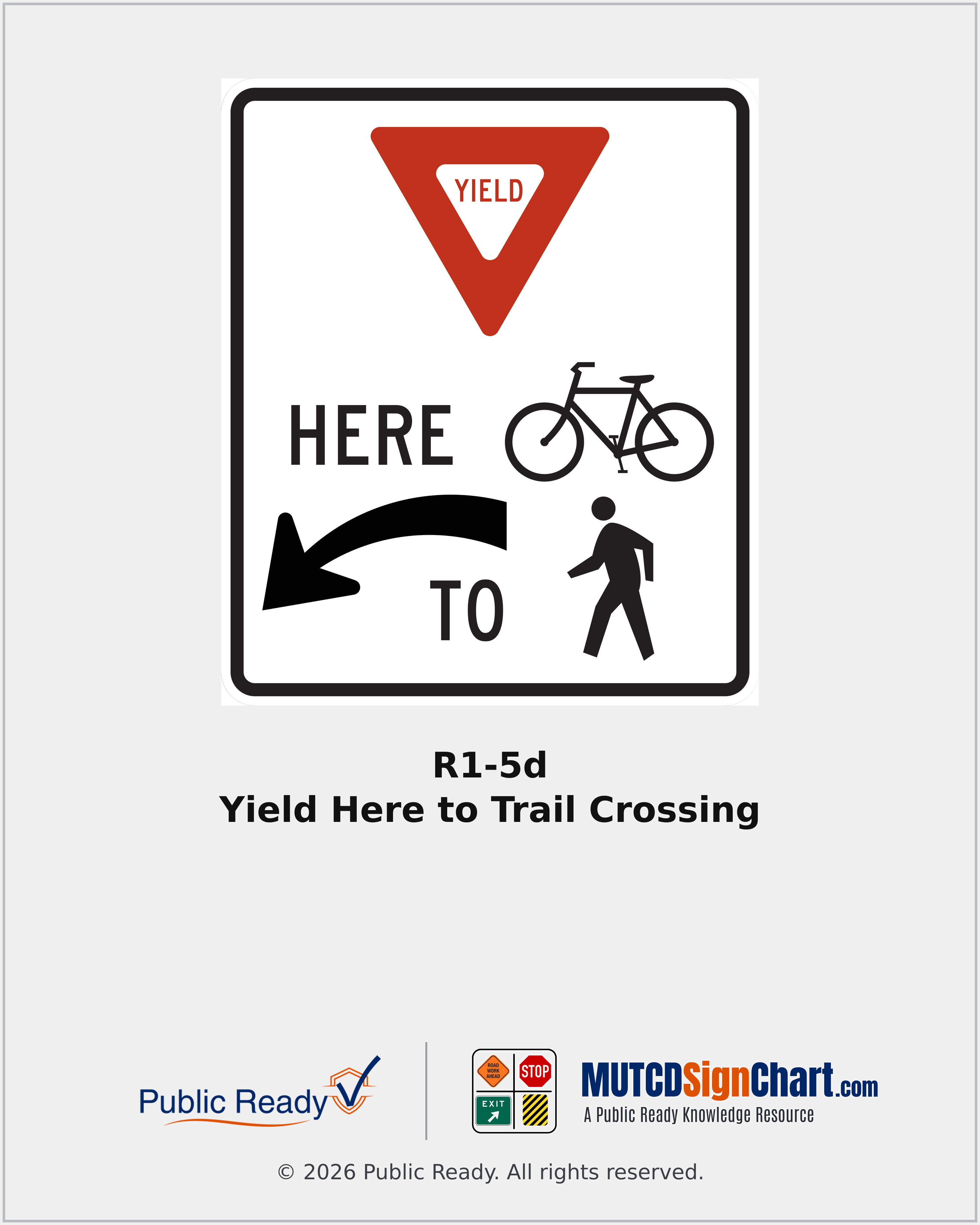

The displayed face is the left-arrow variant. The official drawing contains the right-arrow layout and a left-arrow example. California deletes the STOP counterpart R1-5e.
- Drawing size 136" × 42"
California Application & Variants
The displayed face is the left-arrow variant. The official drawing contains the right-arrow layout and a left-arrow example. California deletes the STOP counterpart R1-5e.
When & Where It's Used
- Trail crossing control
Placement Context
- Where it sits
- Use in advance of an uncontrolled multi-lane trail crossing; coordinate the arrow and the advance yield-line location.
- CA MUTCD reference
- CA MUTCD 2026 §2B.19
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
