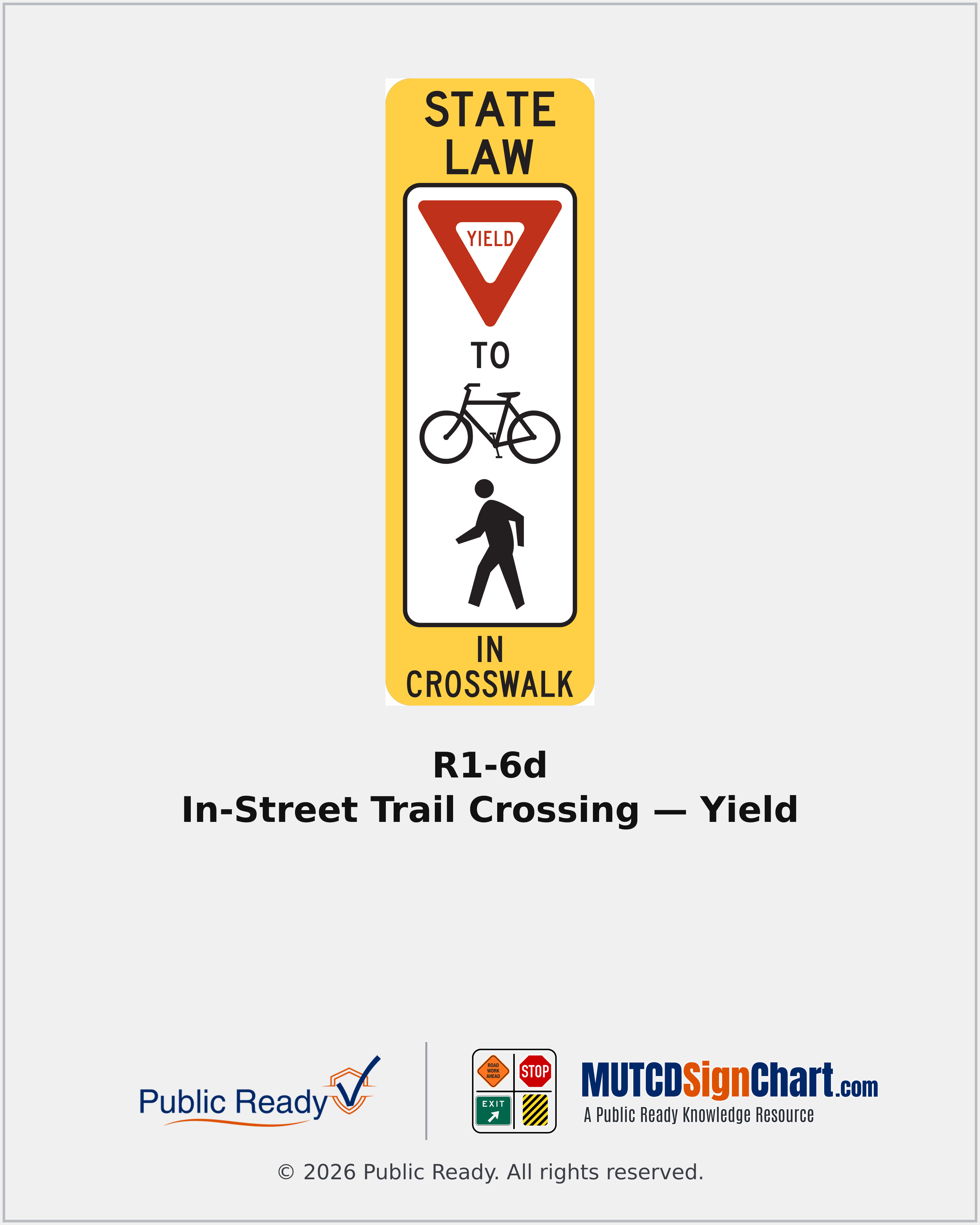

R1-6d In-Street Trail Crossing — Yield
Reminds drivers to yield to pedestrians and bicyclists in the trail crosswalk.
- Sign Name
- In-Street Trail Crossing — Yield
- MUTCD Code
- R1-6d
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Yellow outer background (fluorescent yellow-green alternative permitted); white inner panel, black legend, red YIELD symbol
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Do not post on the roadside or in advance of the crosswalk. Do not use on approaches controlled by STOP, a traffic signal, or a pedestrian/emergency hybrid beacon. California deletes the STOP counterpart R1-6e.
- Drawing size 112" × 36"
California Application & Variants
Do not post on the roadside or in advance of the crosswalk. Do not use on approaches controlled by STOP, a traffic signal, or a pedestrian/emergency hybrid beacon. California deletes the STOP counterpart R1-6e.
When & Where It's Used
- Trail crossing control
Placement Context
- Where it sits
- Place in the roadway at the trail crosswalk, using the required in-street support and accompanying trail-crossing warning assembly.
- CA MUTCD reference
- CA MUTCD 2026 §2B.20
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
