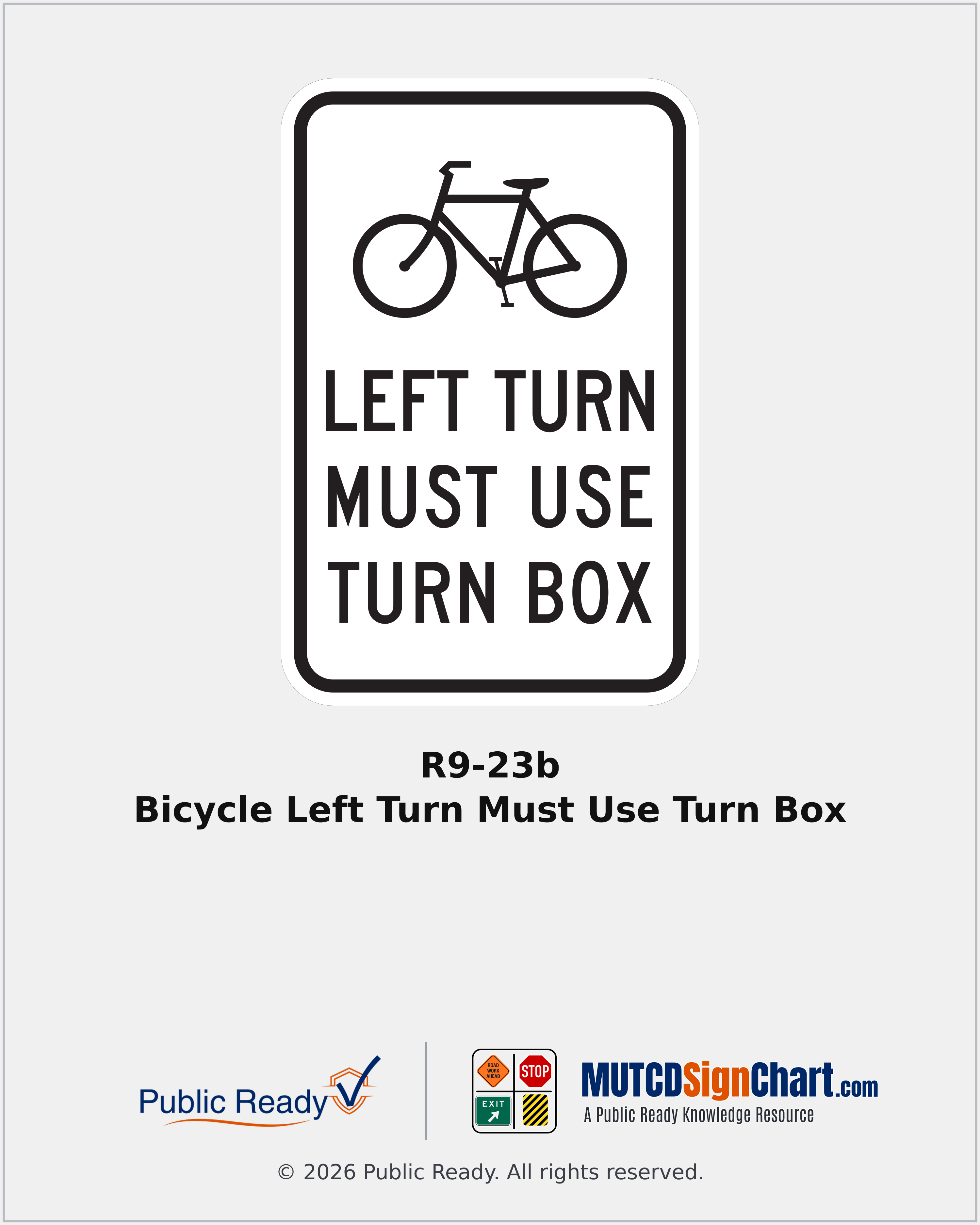

R9-23b Bicycle Left Turn Must Use Turn Box
Requires the bicycle left turn to use the designated two-stage turn box.
- Sign Name
- Bicycle Left Turn Must Use Turn Box
- MUTCD Code
- R9-23b
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Black legend and border on white background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions checked against the exact official drawing. Select by the applicable roadway or bicycle-facility requirements; displayed hours, fees, and other variable legends are examples.
- Official drawing size12" × 18"
California Application & Variants
Mount this near-side sign at the intersection where use of the turn box is required. Use the appropriate advance R9-23 or R9-23a sign as well.
When & Where It's Used
- Pedestrian and bicycle route review
Placement Context
- Where it sits
- Near side of the intersection at the mandatory two-stage bicycle turn box..
- CA MUTCD reference
- CA MUTCD 2026 §9B.18
Related Signs
Browse Regulatory Signs
