R89A(CA) · One Vehicle per Green
R89A(CA) Sizes & Dimensions
These sizes are listed in the linked California MUTCD table. Use the applicable roadway column and confirm the approved design and fabrication details with the roadway authority. All dimensions below are in inches.
Open R89A(CA) Official Size Table (PDF, opens in a new tab)Official PDF · Opens in a new tab
Sizes Listed in the California Manual

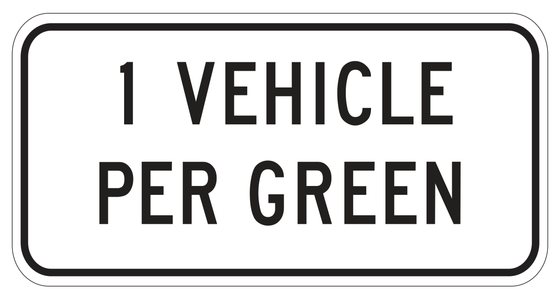

CA MUTCD 2026 Table 2B-1(CA) lists 36 × 18 inches in both conventional-road columns. It does not specify a minimum or freeway size for this entry. The artwork is from Figure 2B-29(CA); a standalone dimensioned drawing is not linked. Confirm approved fabrication details with the roadway authority.
- Conventional roads — single and multi-lane36" × 18"
Listed in both conventional-road columns of Table 2B-1(CA).
The minimum, expressway, freeway, and oversized columns have no listed value for this sign.
A manual table entry is not a standalone fabrication drawing. These sizes are listed in the linked California MUTCD table. Use the applicable roadway column and confirm the approved design and fabrication details with the roadway authority.
California Application & Variants
California replaces the federal R10-28 designation with R89A(CA) for this single-controlled-lane application. CA MUTCD 2026 Table 2B-1(CA) lists 36 × 18 inches in both conventional-road columns. It does not specify a minimum or freeway size for this entry. The artwork is from Figure 2B-29(CA); a standalone dimensioned drawing is not linked. Confirm approved fabrication details with the roadway authority.
