R12-1 Weight Limit
Indicates the posted gross vehicle weight restriction for a highway section or structure.
- Sign Name
- Weight Limit
- MUTCD Code
- R12-1
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- Black legend and border on white background
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Dimensions checked against the exact official drawing. California Table 2B-1 governs application-size selection; example weights do not establish a legal load limit.

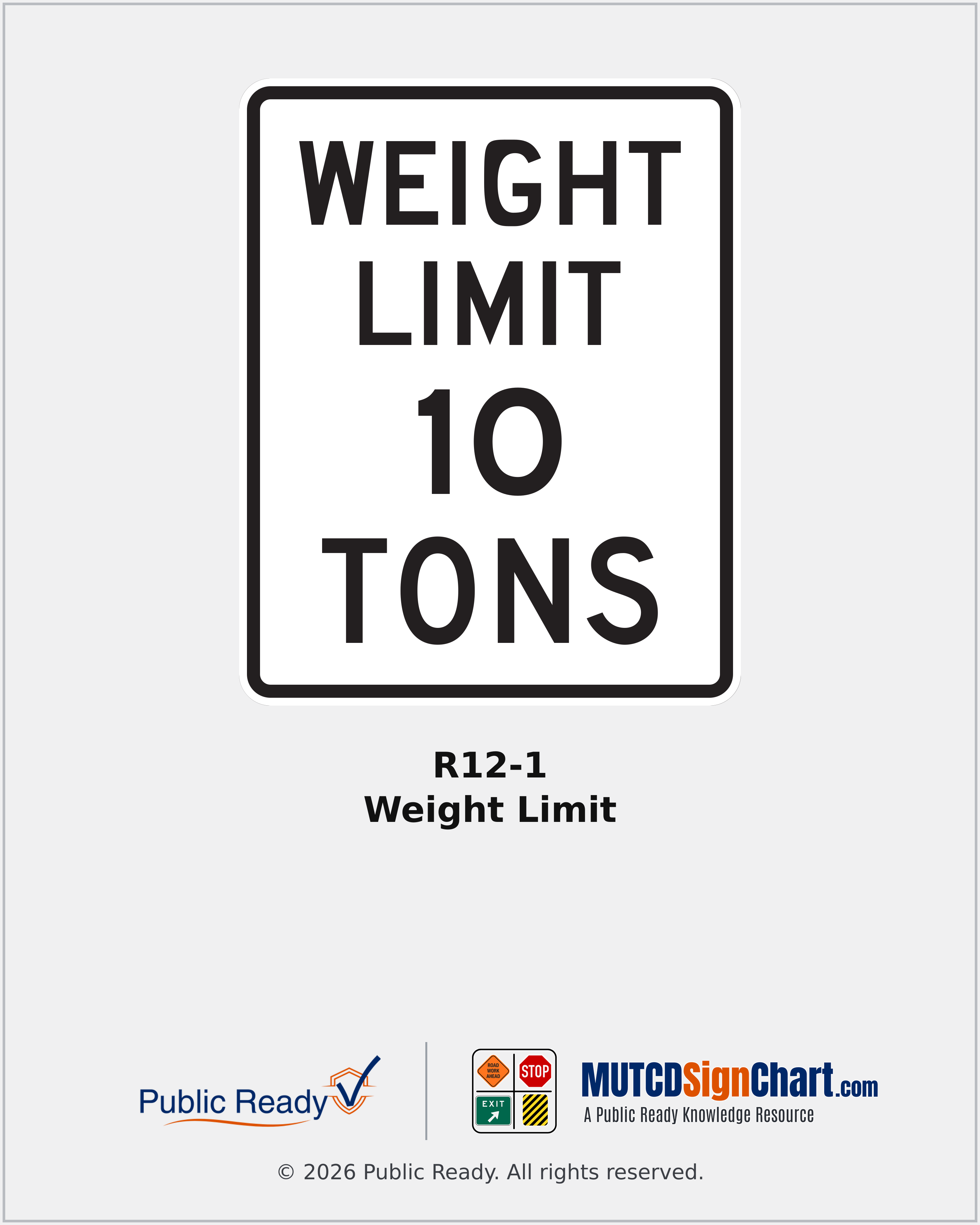

- Official drawing size24" × 30"
- Official drawing size36" × 48"
California Application & Variants
Use the authorized load limit and consistent units. The illustrated 10 tons is an example, not a statewide limit.
When & Where It's Used
- Weight-restricted detour and hauling-route review
Placement Context
- Where it sits
- At each end of the affected highway section or at the restricted structure, with advance notice allowing prohibited vehicles to detour or turn around..
- CA MUTCD reference
- CA MUTCD 2026 §2B.64
