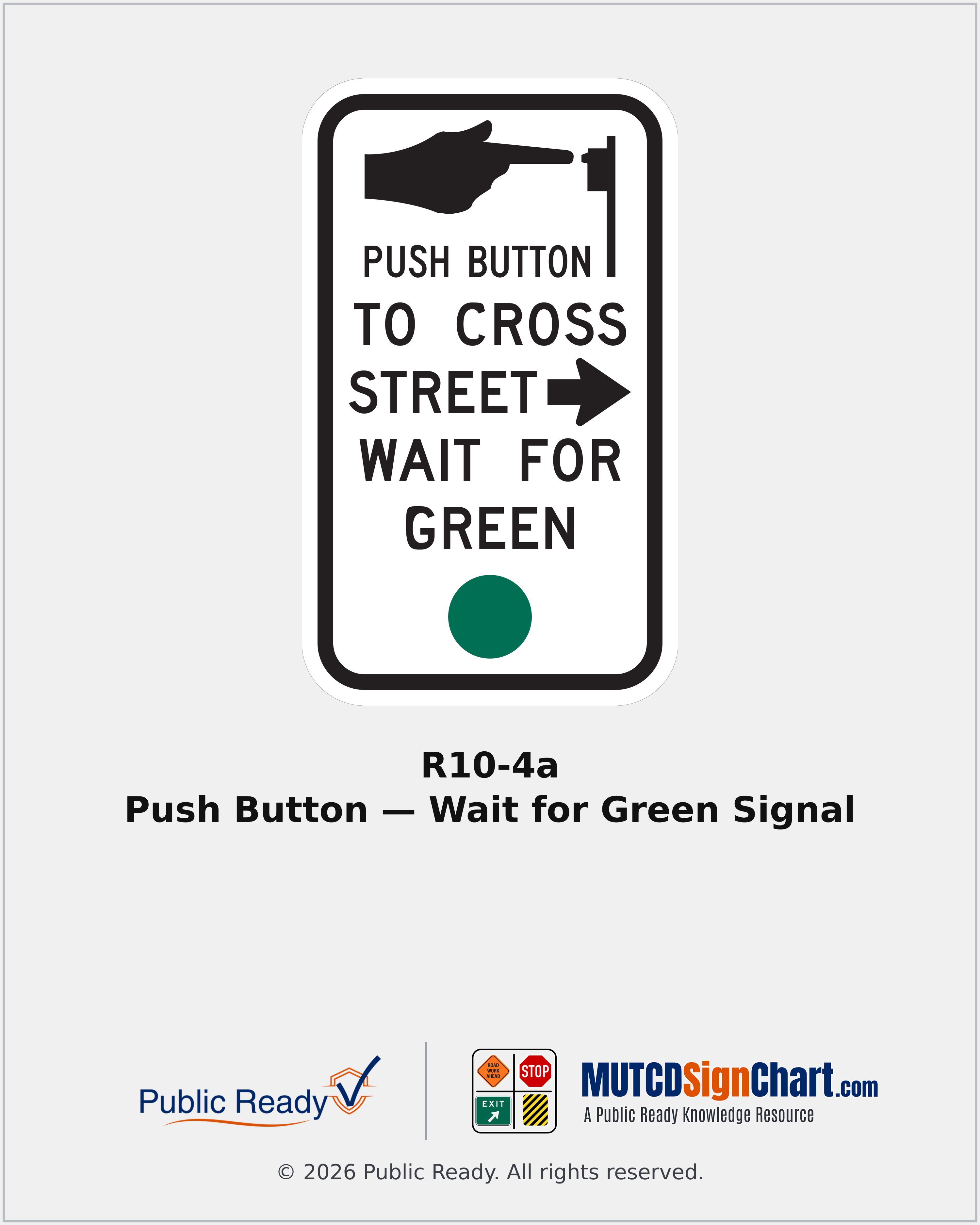

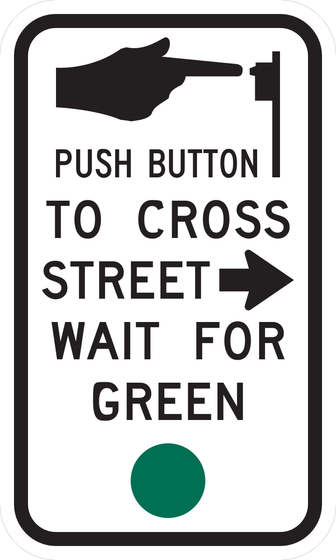

R10-4a Push Button — Wait for Green Signal
Tells the user to push the button for the indicated crossing and wait for green.
- Sign Name
- Push Button — Wait for Green Signal
- MUTCD Code
- R10-4a
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- White background, black legend and border; green signal symbol
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Verify the street legend and direction; the street name may replace STREET.
- Drawing size 19" × 15"
When & Where It's Used
- Pedestrian signal control
Placement Context
- Where it sits
- Use with the applicable push-button detector and green signal indication.
- CA MUTCD reference
- CA MUTCD 2026 §2B.58
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
