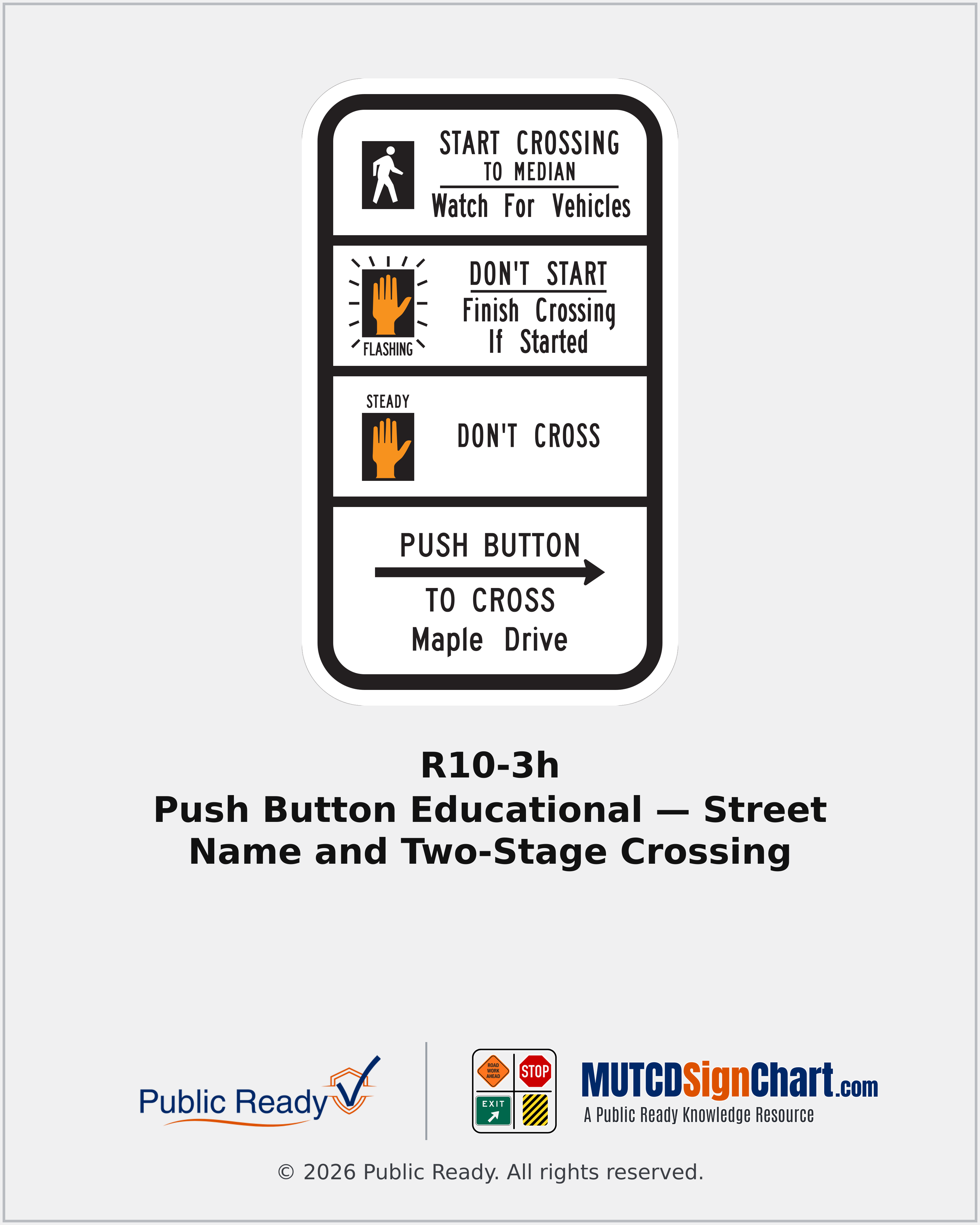

R10-3h Push Button Educational — Street Name and Two-Stage Crossing
Names the crossing street and explains a two-stage pedestrian crossing to a median refuge.
- Sign Name
- Push Button Educational — Street Name and Two-Stage Crossing
- MUTCD Code
- R10-3h
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- White background, black legend and border; orange pedestrian indications where shown
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Verify the street name, median refuge, and crossing-stage timing; the example legend is not a project instruction.
- Drawing size 19" × 15"
When & Where It's Used
- Pedestrian signal control
Placement Context
- Where it sits
- Use with the push button and crossing stage identified by the street-name legend.
- CA MUTCD reference
- CA MUTCD 2026 §2B.58
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
