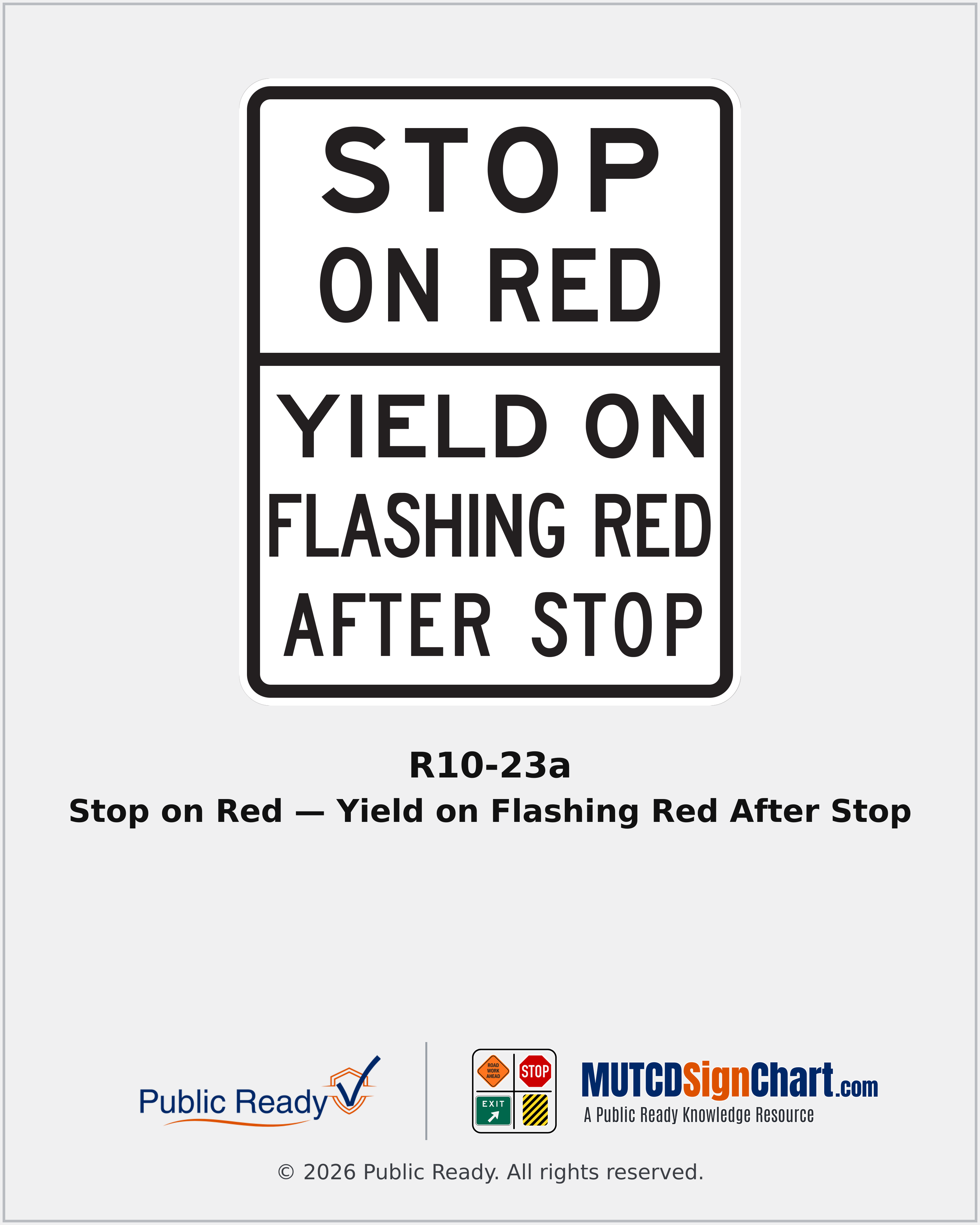

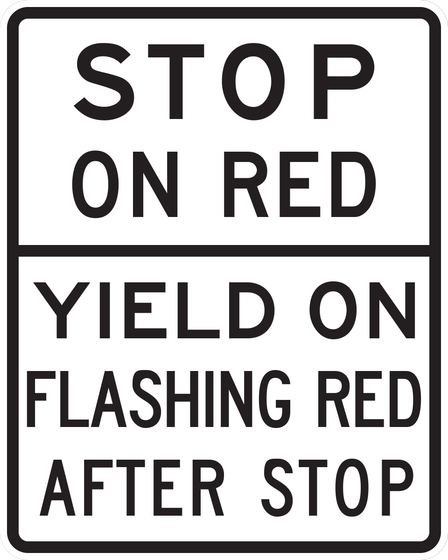

R10-23a Stop on Red — Yield on Flashing Red After Stop
Explains stopping on red and yielding after a stop during the flashing-red operation of a pedestrian hybrid beacon.
- Sign Name
- Stop on Red — Yield on Flashing Red After Stop
- MUTCD Code
- R10-23a
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Vertical)
- Color / legend
- White background, black legend and border
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
Match the sign message and beacon operation to CA MUTCD 2B.59 and 4J.02.
- Drawing size 124" × 30"
When & Where It's Used
- Pedestrian signal control
Placement Context
- Where it sits
- Use only in conjunction with a pedestrian hybrid beacon.
- CA MUTCD reference
- CA MUTCD 2026 §2B.59 and 4J.02
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
