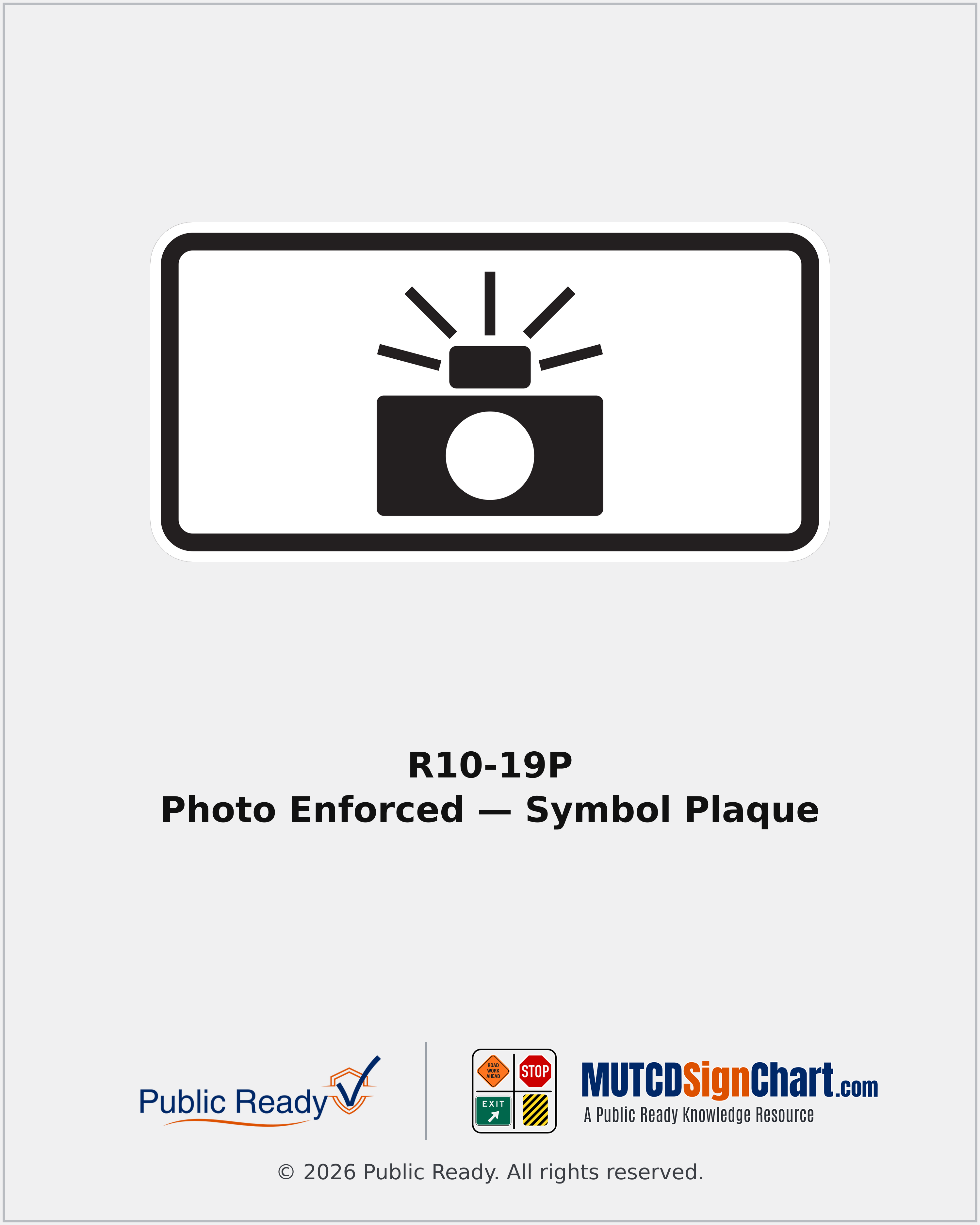

R10-19P Photo Enforced — Symbol Plaque
Uses the camera symbol to identify photo enforcement associated with the parent sign.
- Sign Name
- Photo Enforced — Symbol Plaque
- MUTCD Code
- R10-19P
- Sign Category
- Regulatory Signs
Specifications
- Shape
- Rectangle (Horizontal)
- Color / legend
- White background, black legend and border
Sizes & Dimensions (inches)
These are dimensions shown on the linked layout. Select the required size using the applicable MUTCD and agency requirements; the smallest drawing size is not necessarily the permitted minimum.
This plaque supplements a parent sign; it does not establish an enforcement program or a separate traffic restriction.
- Drawing size 124" × 12"
- Drawing size 236" × 18"
- Drawing size 348" × 24"
When & Where It's Used
- Signal control and supplemental instructions
Placement Context
- Where it sits
- Use as a supplemental plaque for the applicable photo-enforcement message.
- CA MUTCD reference
- CA MUTCD 2026 §2B.69
Related Signs
Browse Regulatory Signs
Educational reference only. This is not an official Caltrans, FHWA, or local agency publication and is not legal or engineering advice. Always verify sign selection, size, placement, spacing, and application against the current CA MUTCD 2026, Caltrans sign specifications, Standard Plans, project documents, and the reviewing agency’s requirements. Local jurisdictions may impose additional requirements, and final selection, placement, and dimensions may require engineering judgment or agency approval. Reference editions: California MUTCD 2026 (effective January 18, 2026) and the Federal MUTCD 11th Edition with Revision 1.
